| Manufacturer Name | BUSSMANN |
| MfgPartNo | RDF100J-3 |
| Additional Information | RoHS Compliant; Short Circuit Current Rating 200 Kiloamp; Temperature Rating -20 to 70 Deg C; Applicable Standard NFPA 79 |
| Amperage Rating | 100 A |
| Application | Stationary Mach Equip In Factory - Robotics |
| Approval | UL (Canada and US), CSA 22.2, CE |
| Base Price | 0.0000 |
| Catalog Number | RDF100J-3 |
| Commerce Sector | Construction Materials |
| Commodity Code | 31810 |
| Commodity Description | Fusible Rotary Safety Switches |
| Conductor Material | Copper |
| Conductor Size | 12 to 10 AWG (Solid), 12 to 1 AWG (Stranded) |
| CountryOfOrigin | MUL |
| Current Rating | 100 Amp |
| DDCATEGORY | 1721 |
| Depth | 5.8 in |
| Directory | CIS |
| Families | 1721 |
| Family Description | Fusible Rotary Safety Switches |
| Fuse Type | Class J |

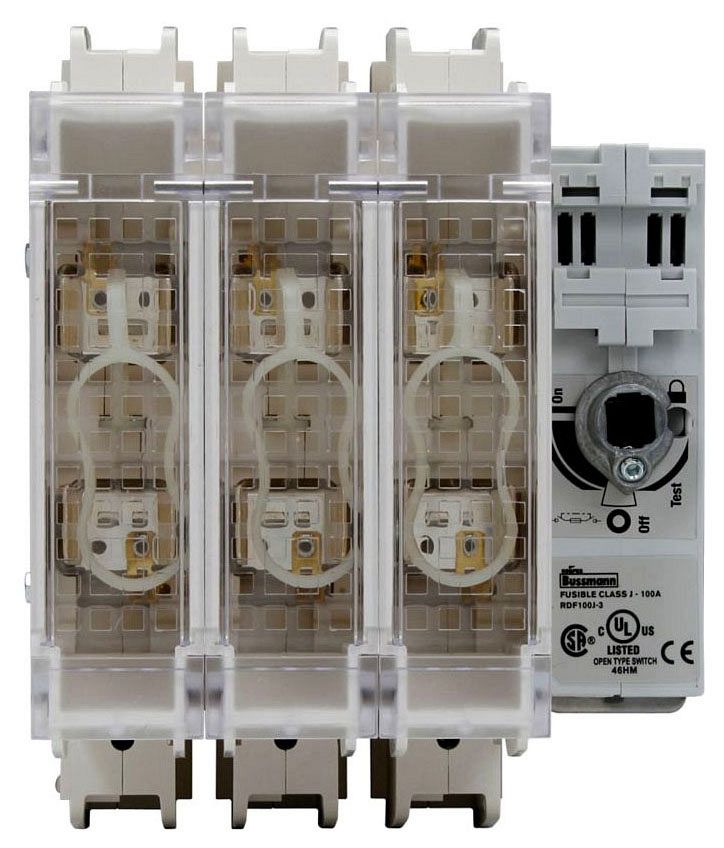

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Switch 100A J 3P UL98;3P 100A DIS-SW |
| Item Number | 40264 |
| Long Description | ROTARY DISCONNECT SWITCH, FUSIBLE, STANDARD TYPE; COPPER CONDUCTOR MATERIAL; UL (CANADA AND US), CSA 22.2, CE APPROVAL; 240/480/600 VOLT AC, 250 VOLT DC (UL 98) VOLTAGE RATING; PANEL MOUNTING; 100 AMP CURRENT RATING |
| MSDS Form Number | * |
| Model | RD |
| Mounting | Panel |
| Noun | * |
| Number Of Poles | 3 |
| Operating Temperature Maximum | 158 F |
| Operating Temperature Minimum | 158 F |
| Operator Position | Front/Side, Flange |
| Operator Type | Direct Handle, Shaft |
| Power Rating | 10 HP at 240 Volt AC 1-Phase, 15 HP at 240 Volt AC 3-Phase, 25 HP at 480 Volt AC 3-Phase, 30 HP at 600 Volt AC 3-Phase, 7.5 HP at 125 Volt DC, 10 HP at 250 Volt DC |
| Product Description | Switch 100A J 3P UL98 |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | BUSS |
| Special Features | Standard switch, Front/side handle operation, Flange |
| Standard | RoHS Compliant,Not Applicable |
| Terminal Type | Lug |
| Type | Fused disconnect switch;Fusible, Standard |
| UNSPSC | 39122205 |
| UPC | 05171240264 |
| Vendor Name | EATON BUSSMANN |
| Vendor Number | 051712 |
| Vendor Short Name | BUSS |
| Voltage Rating | 600 Vac, 250 Vdc;240/480/600 Volt AC, 250 Volt DC (UL 98) |
| Width | 4.75 in |
