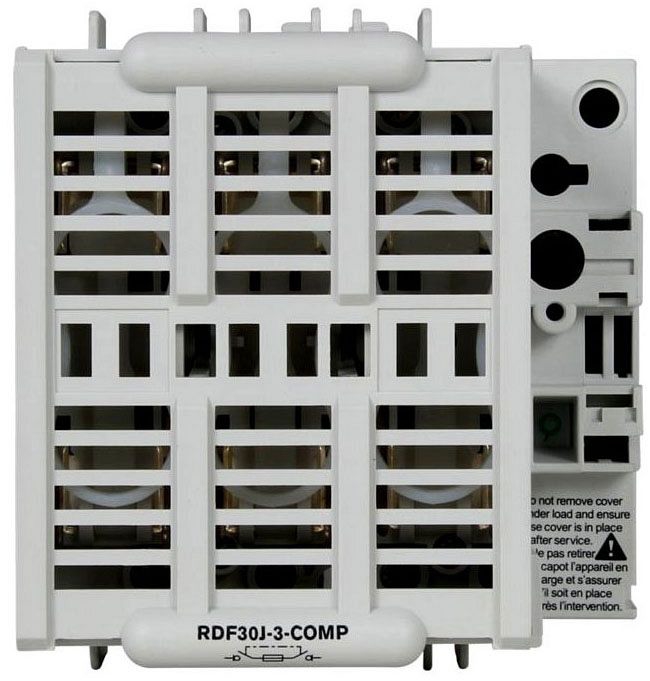

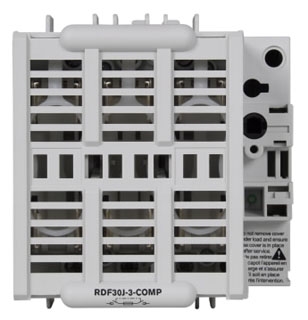

| Manufacturer Name | BUSSMANN |
| MfgPartNo | RDF30J-3-COMP |
| Additional Information | RoHS Compliant; Short Circuit Current Rating 100 Kiloamp; Operating Temperature -20 to 70 Deg C; Applicable Standard NFPA 79 |
| Amperage Rating | 30 A |
| Application | Stationary Mach Equip In Factory - Robotics |
| Approval | UL, CSA C22.2, CE |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | RDF30J-3-COMP |
| Commerce Sector | Construction Materials |
| Commodity Code | 31810 |
| Commodity Description | Fusible Rotary Safety Switches |
| Conductor Material | Copper |
| Conductor Size | 14 to 10 AWG (Solid/Stranded) |
| CountryOfOrigin | MUL |
| Current Rating | 30 Amp |
| DDCATEGORY | 1721 |
| Dimensions | 4.5000 IN X 3.0000 IN X 3.0000 IN |
| Directory | CIS |
| Families | 1721 |
| Family Description | Fusible Rotary Safety Switches |
| Fuse Type | Class J |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Switch 30A J 3P UL489;3P 30A DIS-SW |
| Item Number | 40273 |
| Long Description | ROTARY DISCONNECT SWITCH, FUSIBLE, COMPACT TYPE; COPPER CONDUCTOR MATERIAL; UL, CSA C22.2, CE APPROVAL; 240/480/600 VOLT AC (UL 489) VOLTAGE RATING; DIN-RAIL/PANEL MOUNTING; 30 AMP CURRENT RATING |
| MSDS Form Number | * |
| Model | RD |
| Mounting | DIN-Rail/Panel |
| Noun | * |
| Number Of Poles | 3 |
| Operating Temperature | 70 CEL |
| Operator Position | Front |
| Operator Type | Direct Handle, Shaft |
| Power Rating | 3 HP at 240 Volt AC 3-Phase, 5 HP at 480 Volt AC 3-Phase, 7.5 HP at 600 Volt AC 3-Phase |
| Product Description | Switch 30A J 3P UL489 |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | BUSS |
| Special Features | Compact switch, Front handle operation, Fuse class J |
| Standard | Not Applicable,RoHS Compliant |
| Sub Brand | Bussmann Series |
| Terminal Type | Lug |
| Type | Fused disconnect switch;Fusible, Compact |
| UNSPSC | 39122205 |
| UPC | 05171240273 |
| Vendor Name | EATON BUSSMANN |
| Vendor Number | 051712 |
| Vendor Short Name | BUSS |
| Voltage Rating | 600 V;240/480/600 Volt AC (UL 489) |
