BUSS RDF60J-3-COMP

Switch 60A J 3P UL98 COMP

Page Loading...
BUSSMANN

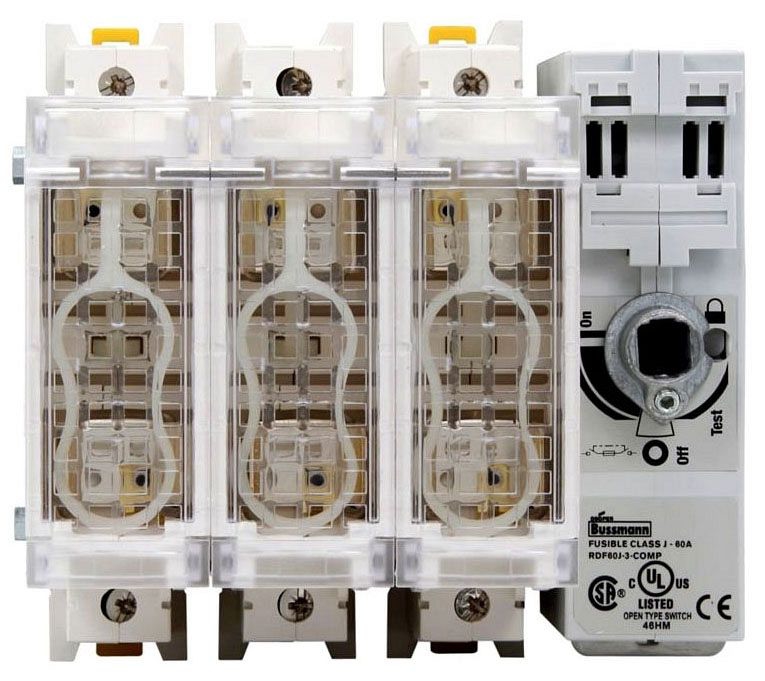

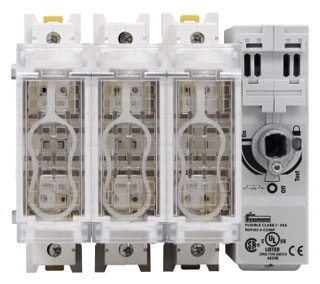

Switch 60A J 3P UL98 COMP

Mouse over image to zoom, click to enlarge

Description:
Switch 60A J 3P UL98 COMP

UPC:  05171240285

Part Number: RDF60J-3-COMP

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $853.08 / EA
Your Price:  $391.55 / EA


Quantity  EA

Specifications

Manufacturer Name BUSSMANN
MfgPartNo RDF60J-3-COMP
Additional Information RoHS Compliant; Short Circuit Current Rating 100 Kiloamp; Temperature Rating -20 to 70 Deg C; Applicable Standard NFPA 79
Amperage Rating 60 A
Application Stationary Mach Equip In Factory - Robotics
Approval UL (Canada and US), CSA 22.2, CE
Base Price 0.0000
Brand Name Eaton
Catalog Number RDF60J-3-COMP
Commerce Sector Construction Materials
Commodity Code 31810
Commodity Description Fusible Rotary Safety Switches
Conductor Material Copper
Conductor Size 14 to 10 AWG (Solid), 14 to 6 AWG (Stranded)
CountryOfOrigin MUL
Current Rating 60 Amp
DDCATEGORY 1721
Dimensions 5.6700 IN X 4.7300 IN X 5.3500 IN
Directory CIS
Families 1721
Family Description Fusible Rotary Safety Switches
Fuse Type Class J
Image Location * Image
Industry ELX
InvoiceDescription Switch 60A J 3P UL98 COMP;3P 60A DIS-SW
Item Number 40285
Long Description ROTARY DISCONNECT SWITCH, FUSIBLE, COMPACT TYPE; COPPER CONDUCTOR MATERIAL; UL (CANADA AND US), CSA 22.2, CE APPROVAL; 240/480/600 VOLT AC, 250 VOLT DC (UL 98) VOLTAGE RATING; DIN-RAIL/PANEL MOUNTING; 60 AMP CURRENT RATING
MSDS Form Number *
Model RD
Mounting DIN-Rail/Panel
Noun *
Number Of Poles 3
Operating Temperature 70 CEL
Operator Position Front/Side
Operator Type Direct Handle, Shaft
Power Rating 10 HP at 240 Volt AC 1-Phase, 7.5 HP at 240 Volt AC 3-Phase, 15 HP at 480/600 Volt AC 3-Phase, 5 HP at 125 Volt DC, 10 HP at 250 Volt DC
Product Description Switch 60A J 3P UL98 COMP
Product Keywords WEBREADY
Product Name Safety switch
ProductLine BUSS
Special Features Compact switch, Front/side handle operation, Flange
Standard Not Applicable,RoHS Compliant
Sub Brand Bussmann Series
Terminal Type Lug
Type Fused disconnect switch;Fusible, Compact
UNSPSC 39122205
UPC 05171240285
Vendor Name EATON BUSSMANN
Vendor Number 051712
Vendor Short Name BUSS
Voltage Rating 600//250 VAC//VDC;240/480/600 Volt AC, 250 Volt DC (UL 98)

Resources

CatalogNumber RDF60J-3-COMP
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
