| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T101-23 |
| Action | Black |
| Additional Information | APPLICABLE STANDARD IEC |
| Application | Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other |
| Approval | UL 508, CSA C22.2, CE EN 60947-5-1 |
| Base Price | 0.0000 |
| Bezel Material | CHROME PLATED DIE CAST ZINC |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Cap Lens Color | BLACK |
| Catalog Number | 10250T101-23 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42210 |
| Commodity Description | Push Button Complete Assemblies |
| Contact Configuration | 2 NO-2 NC;2NO-2NC |
| Contact Rating | 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE |
| CountryOfOrigin | US |
| DDCATEGORY | 2152 |
| Depth | 3.5 in |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12/13, IP65 |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Height | 2 in |
| Illumination Type | Non-illuminated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | FLUSH PB BK 2NO 2NC;30.5M PB |
| Item Number | 25881 |

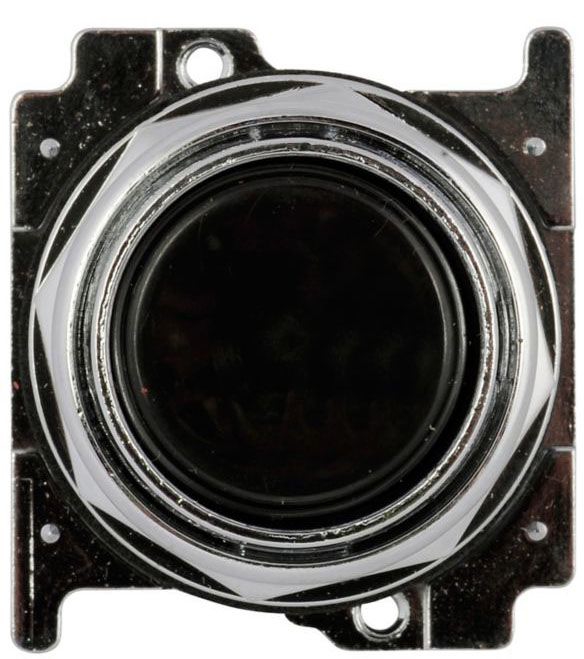

| Long Description | NON-ILLUMINATED PUSH BUTTON, FLUSH TYPE; 30.5 MM SIZE; 2NO-2NC CONTACT CONFIGURATION; MOMENTARY OPERATION TYPE; 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE EN 60947-5-1 APPROVAL |
| MSDS Form Number | * |
| Model | Pushbutton;10250T |
| Mounting | Flush |
| Noun | * |
| Operation Type | MOMENTARY |
| Product Description | 30.5M PB |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| ProductLine | C-H |
| Size | 30.5 MM |
| Standard | UL Listed,CSA Certified,CE Marked |
| Type | FLUSH |
| UNSPSC | 39122216 |
| UPC | 78211325881 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Width | 2.5 in |
