| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T1323-22 |
| Actuator | Knob |
| Additional Information | MAKE AND EMERGENCY INTERRUPTING CAPACITY 7200 VA AT 120 VAC 50/60 HZ 60 AMPERE, 7200 VA AT 240 VAC 50/60 HZ 30 AMPERE, 7200 VA AT 480 VAC 50/60 HZ 15 AMPERE, 7200 VA AT 600 VAC 50/60 HZ 12 AMPERE, 138 VA AT 24/28 VDC 5.7 AMPERE, 138 VA AT 125 VDC 1.1 AMPE |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approval | UL 508, CSA C22.2, CE |
| Base Price | 0.0000 |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Cam Code | 3 |
| Catalog Number | 10250T1323-22 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42250 |
| Commodity Description | Selector Switch Complete Assemblies |
| Contact Configuration | 4 NO;4NO |
| Contact Rating | 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE |
| CountryOfOrigin | US |
| DDCATEGORY | 2156 |
| Dimensions | 1.0000 IN X 1.0000 IN X 1.0000 IN |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12/13, IP65 |
| Families | 2156 |
| Family Description | Selector Switch Complete Assemblies |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SEL SW 3P KNB MA C3 4NO;30.5MM SSW |
| Item Number | 44149 |
| Knob Color | BLACK |

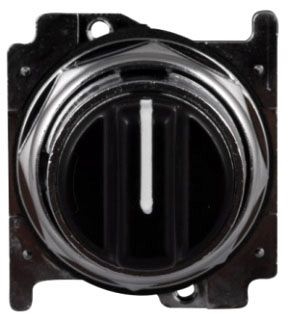

| Long Description | SELECTOR SWITCH, KNOB TYPE; 30.5 MM SIZE; 4NO CONTACT CONFIGURATION; MAINTAINED OPERATION TYPE; 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL; NEMA 3/3R/4/4X/12/13, IP65 ENCLOSURE |
| MSDS Form Number | * |
| Model | 10250T |
| Noun | * |
| Number Of Positions | 3 |
| Operation Type | MAINTAINED |
| Product Description | 30.5MM SSW |
| Product Keywords | WEBREADY |
| Product Name | Rotary switch |
| ProductLine | C-H |
| Size | 30.5 MM |
| Standard | UL Listed,CSA Certified,CE Marked |
| Throw | LEFT-CENTER-RIGHT 60 DEG |
| Type | Pushbutton;KNOB |
| UNSPSC | 39122217 |
| UPC | 78211344149 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
