| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T15113MD15 |
| Actuator | Key |
| Additional Information | LOCK NUMBER MD15; VERTICAL MOUNT |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Base Price | 0.0000 |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Brand Name | Eaton |
| Cam Code | 1 |
| Catalog Number | 10250T15113MD15 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42260 |
| Commodity Description | Selector Switch Components |
| CountryOfOrigin | DO |
| DDCATEGORY | 2157 |
| Dimensions | 1.0000 IN X 1.0000 IN X 1.0000 IN |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12/13, IP65 |
| Families | 2157 |
| Family Description | Selector Switch Components |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SEL SW 2P KEY MA;2POS KEY SEL SW |
| Item Number | 95920 |

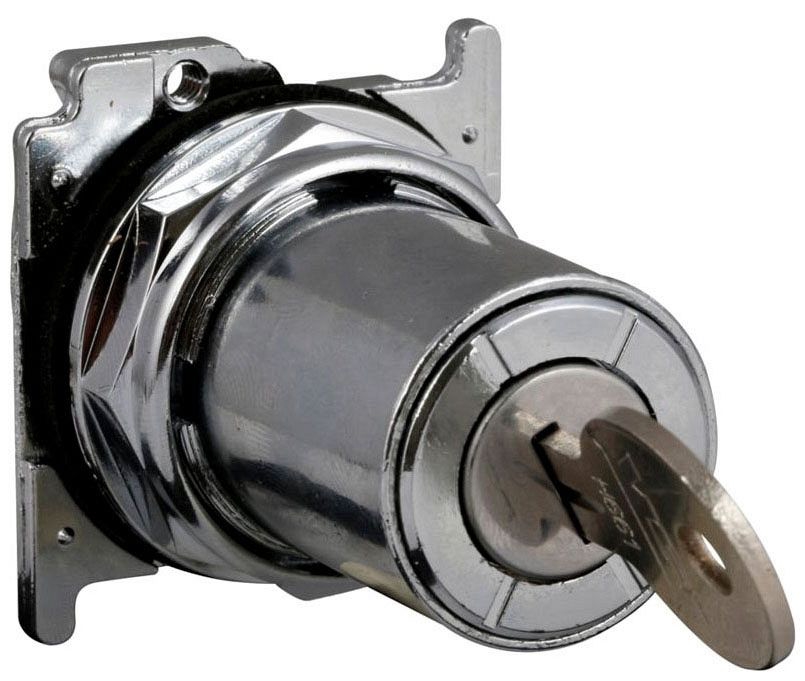

| Long Description | SELECTOR SWITCH OPERATOR, KEY REMOVE LEFT, KEY REMOVE RIGHT TYPE; 30.5 MM SIZE; MAINTAINED OPERATION TYPE; NEMA 3/3R/4/4X/12/13, IP65 ENCLOSURE; CHROME PLATED DIE CAST ZINC BODY MATERIAL; 2 POSITION(S); LEFT-RIGHT 60 DEG THROW; 1 CAM CODE |
| MSDS Form Number | * |
| Model | 10250T |
| Noun | * |
| Number Of Positions | 2 |
| Operation Type | MAINTAINED |
| Product Description | 2POS KEY SEL SW |
| Product Keywords | WEBREADY |
| Product Name | Rotary switch |
| ProductLine | C-H |
| Size | 30.5 MM |
| Standard | UL Listed,CSA Certified,CE Marked |
| Throw | LEFT-RIGHT 60 DEG |
| Type | Pushbutton;KEY REMOVE LEFT, KEY REMOVE RIGHT |
| UNSPSC | 39122217 |
| UPC | 78211495920 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
