| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T235NC22 |
| Additional Information | ENVIRONMENTAL CONDITIONS OIL TIGHT, WATER TIGHT; HEAVY DUTY; OPERATING TEMPERATURE 1 TO 150 DEG F; RATED LIFE 10000000 OPERATIONS; TERMINAL TYPE SADDLE CLAMP |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL 508, CSA C22.2, CE EN 60947-5-1 |
| Base Price | 0.0000 |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Brand Name | Eaton |
| Catalog Number | 10250T235NC22 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42230 |
| Commodity Description | Pilot Light Complete Assemblies |
| CountryOfOrigin | DO |
| DDCATEGORY | 2154 |
| Dimensions | 0.0100 IN X 0.0100 IN X 0.0100 IN |
| Directory | CIS |
| Enclosure | NEMA 1/2/3/3R/3S/4/4X/12/13, IP65 |
| Families | 2154 |
| Family Description | Pilot Light Complete Assemblies |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PRES-TEST INDICATING LIGHT;INDG LT |
| Item Number | 84777 |
| Lamp Input Type | 24 VAC/VDC FULL VOLTAGE |
| Lamp Number | 757 |
| Lamp Type | INCANDESCENT |
| Lens Color | GREEN |
| Lens Material | PLASTIC |

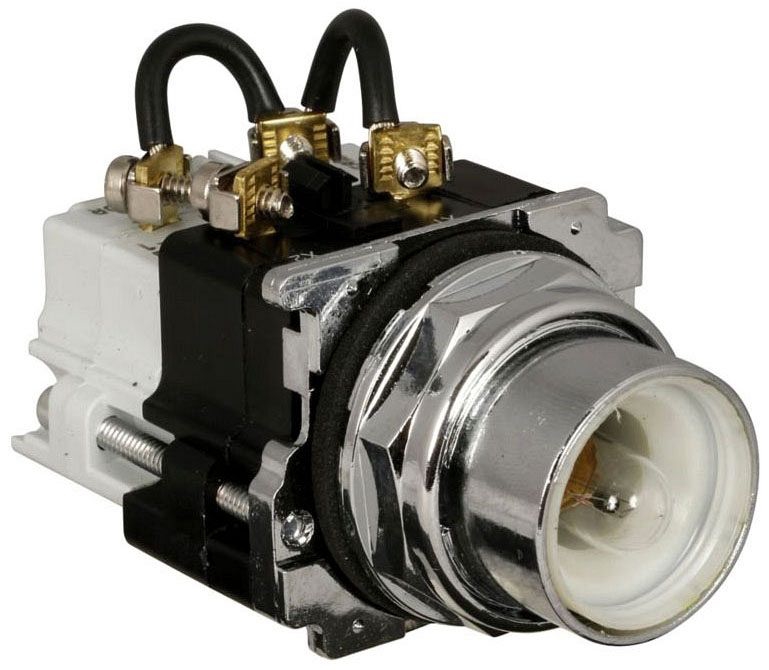

| Long Description | INDICATING LIGHT, PRESS TO TEST TYPE; 30.5 MM SIZE; UL 508, CSA C22.2, CE EN 60947-5-1 APPROVAL; NEMA 1/2/3/3R/3S/4/4X/12/13, IP65 ENCLOSURE; CHROME PLATED DIE CAST ZINC BODY MATERIAL; INCANDESCENT LAMP TYPE; 24 VAC/VDC FULL VOLTAGE LAMP INPUT TYPE |
| MSDS Form Number | * |
| Model | 10250T |
| Noun | * |
| Product Description | INDG LT |
| Product Keywords | WEBREADY |
| Product Name | Indicator or pilot lights |
| ProductLine | C-H |
| Size | 30.5 MM |
| Standard | UL Listed,CSA Certified,CE Marked |
| Type | Pushbutton;PRESS TO TEST |
| UNSPSC | 39121534 |
| UPC | 78211384777 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
