| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T597LGS24-1X |
| Actuator | Side-Lighted |
| Additional Information | FACTORY ASSEMBLED; SIDE LIGHTED ALUMINUM LENS; TERMINAL TYPE SADDLE CLAMP |
| Application | Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other |
| Approval | UL 508, CSA C22.2, CE EN 60947-5-1 |
| Base Price | 0.0000 |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Cap Lens Color | GREEN |
| Catalog Number | 10250T597LGS24-1X |
| Commerce Sector | Construction Materials |
| Commodity Code | 42210 |
| Commodity Description | Push Button Complete Assemblies |
| Contact Configuration | 1 NO-1 NC;1NO-1NC |
| Contact Rating | 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE |
| CountryOfOrigin | US |
| DDCATEGORY | 2152 |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12/13, IP65 |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Height | 1 in |

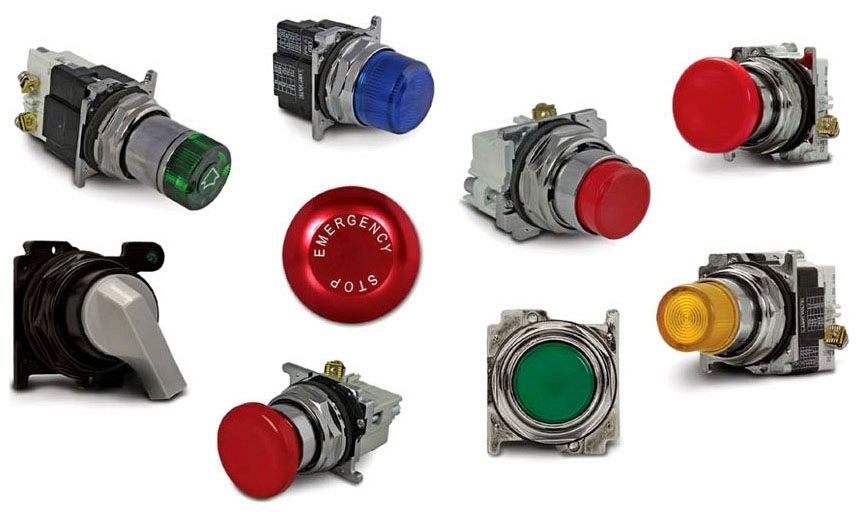

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 2P ILL MT P-P S LT GN-FV 24V LED-OXXO;GRN P/PL SW |
| Item Number | 71346 |
| Lamp Included | 1 |
| Lamp Input Type | 24 VAC/VDC FULL VOLTAGE |
| Lamp Type | LED BAYONET BASE |
| Length | 1 in |
| Long Description | ILLUMINATED PUSH BUTTON, STANDARD TYPE; 30.5 MM SIZE; 1NO-1NC CONTACT CONFIGURATION; MAINTAINED OPERATION TYPE; 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE EN 60947-5-1 APPROVAL |
| MSDS Form Number | * |
| Model | 10250T |
| Noun | * |
| Number Of Positions | 2 |
| Operation Type | MAINTAINED |
| Product Description | GRN P/PL SW |
| Product Keywords | WEBREADY |
| Product Name | Emergency stop device |
| ProductLine | C-H |
| Size | 40 mm;30.5 MM |
| Special Features | Factory Assembled |
| Standard | CSA Certified,UL Listed,CE Marked |
| Type | Pushbutton;STANDARD |
| UNSPSC | 39121545 |
| UPC | 78211471346 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
| Width | 1 in |
