| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T77G |
| Additional Information | TERMINAL TYPE SADDLE CLAMP |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL 508, CSA C22.2, CE |
| Base Price | 0.0000 |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Cap Lens Color | GREEN |
| Catalog Number | 10250T77G |
| Commerce Sector | Construction Materials |
| Commodity Code | 42210 |
| Commodity Description | Push Button Complete Assemblies |
| Contact Configuration | 1 NC;1NC |
| Contact Rating | 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE |
| CountryOfOrigin | US |
| DDCATEGORY | 2152 |
| Dimensions | 1.8000 IN X 1.3800 IN X 1.3800 IN |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12/13, IP65 |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Illumination Type | Illuminated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | IL PB 120V/XFR G LENS 1NC;30.5MM PB |
| Item Number | 68510 |
| Lamp Included | 1 |
| Lamp Input Type | 120 VAC TRANSFORMER |
| Lamp Number | 755 |
| Lamp Type | INCANDESCENT |

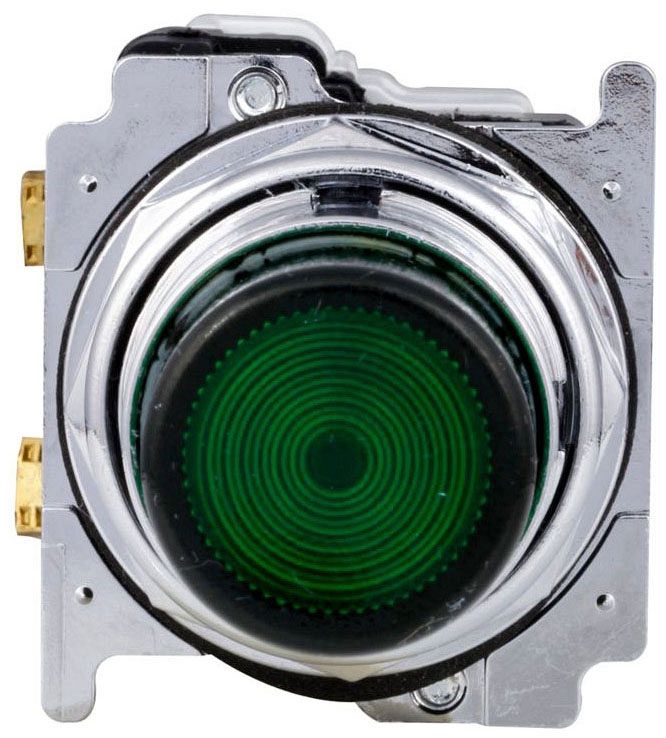

| Long Description | ILLUMINATED PUSH BUTTON, 30.5 MM SIZE; 1NC CONTACT CONFIGURATION; MOMENTARY OPERATION TYPE; 600 VAC AT 50/60 HZ 10 AMPERE, 250 VDC 5 AMPERE CONTACT RATING; UL 508, CSA C22.2, CE APPROVAL; NEMA 3/3R/4/4X/12/13, IP65 ENCLOSURE |
| MSDS Form Number | * |
| Model | 10250T |
| Noun | * |
| Operation Type | MOMENTARY |
| Product Description | 30.5MM PB |
| Product Keywords | WEBREADY |
| Product Name | Indicator or pilot lights |
| ProductLine | C-H |
| Size | 30.5 MM |
| Special Features | 10250T series |
| Standard | CSA Certified,UL Listed,CE Marked |
| Type | Pushbutton |
| UNSPSC | 39121534 |
| UPC | 78211368510 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
