| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10250T871GD |
| Action | Green |
| Actuator | Standard |
| Additional Information | LENS TYPE STANDARD; OPERATING TEMPERATURE 32 TO 140 DEG F; SIZE 1.65 INCH DIAMETER X 3.79 INCH LENGTH; TERMINAL MATERIAL STAINLESS STEEL; TERMINAL TYPE SADDLE CLAMP; WIRE SIZE 18 TO 14 AWG |
| Application | Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other |
| Approval | UL 508, UL 1604, CSA C22.2, CE EN 60947-5-1/10.91 |
| Base Price | 0.0000 |
| Body Material | CHROME PLATED DIE CAST ZINC |
| Brand Name | Eaton |
| Cap Lens Color | GREEN |
| Catalog Number | 10250T871GD |
| Commerce Sector | Construction Materials |
| Commodity Code | 42210 |
| Commodity Description | Push Button Complete Assemblies |
| Contact Configuration | 2 NC;2NC |
| Contact Rating | 600 VAC 10 AMPERE, 250 VDC 2.5 AMPERE |
| CountryOfOrigin | DO |
| DDCATEGORY | 2152 |
| Dimensions | 1.0000 IN X 1.0000 IN X 1.0000 IN |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12/13, IP65, NEC CLASS I DIV 2, GROUP B, C, D |
| Families | 2152 |
| Family Description | Push Button Complete Assemblies |
| Illumination Type | Illuminated |

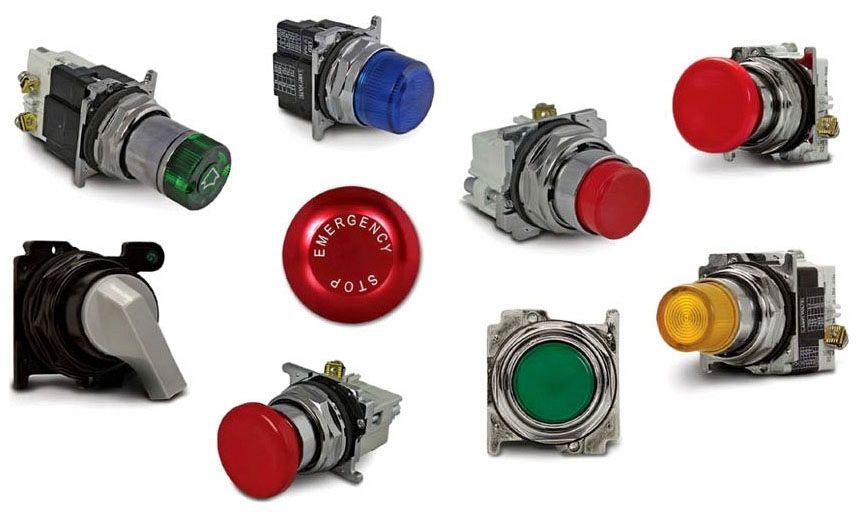

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Eaton 10250T pushbutton;24V 3P GRN IL PS/PL |
| Item Number | 52115 |
| Lamp Included | 1 |
| Lamp Input Type | 24 VAC/VDC FULL VOLTAGE |
| Lamp Type | INCANDESCENT |
| Long Description | ILLUMINATED PUSH BUTTON, STANDARD TYPE; 30.5 MM SIZE; 2NC CONTACT CONFIGURATION; MOMENTARY PULL/MAINTAINED INTERMEDIATE/MAINTAINED PUSH OPERATION TYPE; 600 VAC 10 AMPERE, 250 VDC 2.5 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Model | 10250T |
| Noun | * |
| Number Of Positions | 3 |
| Operation Type | MOMENTARY PULL/MAINTAINED INTERMEDIATE/MAINTAINED PUSH |
| Product Description | 24V 3P GRN IL PS/PL |
| Product Keywords | WEBREADY |
| Product Name | Push button switch |
| ProductLine | C-H |
| Size | 40 mm;30.5 MM |
| Standard | CSA Certified,UL 1604,UL 508,FDA 3-A,CE Marked |
| Type | Pushbutton;STANDARD |
| UNSPSC | 39122216 |
| UPC | 78211452115 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
