| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10316H187 |
| Actuator | Side rotary operated |
| Actuator Head Type | Side Rotary |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | Die-Cast Zinc |
| Catalog Number | 10316H187 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw terminal |
| Connection Type | Screw Terminal |
| Contact Configuration | 1 NO-1 NC;1NO-1NC |
| Contact Rating | 10A at 240 Vac, 0.11A at 250 Vdc;240 Volt AC at 10 Amp, 250 Volt DC at 0.11 Amp |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Dimensions | 2.2500 IN X 1.5500 IN X 3.8800 IN |
| Directory | CIS |
| Enclosure | NEMA 1/4/13 |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |

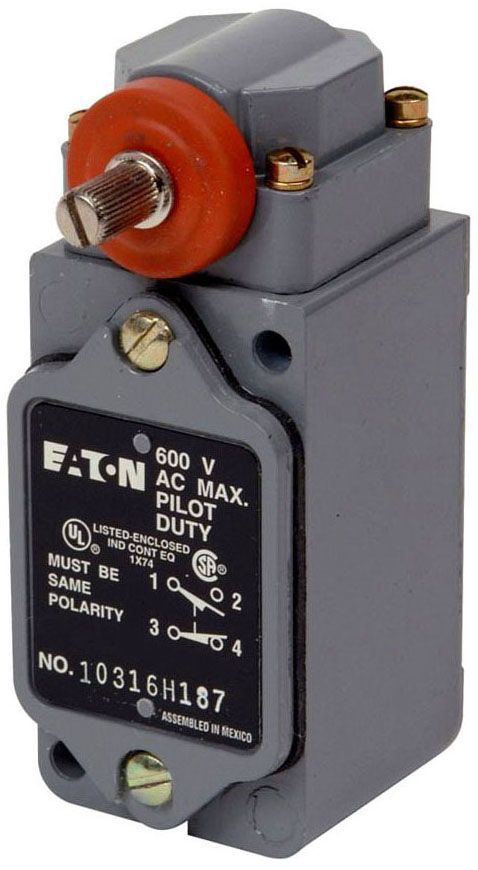

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 10316 TYPE L LIMIT SWITCH;LIMIT SWITCH |
| Item Number | 22902 |
| Long Description | LIMIT SWITCH, STANDARD, NON-PLUG-IN TYPE; 1NO-1NC CONTACT CONFIGURATION; SCREW TERMINAL CONNECTION TYPE; STANDARD OPERATION TYPE; 240 VOLT AC AT 10 AMP, 250 VOLT DC AT 0.11 AMP CONTACT RATING; UL, CSA APPROVAL; NEMA 1/4/13 ENCLOSURE |
| MSDS Form Number | * |
| Model | 10316H |
| Noun | * |
| Operating Force | 3 Inch-Pound |
| Operating Temperature | -20 to 200 Deg F |
| Operating Temperature Maximum | -20 F |
| Operating Temperature Minimum | -20 F |
| Operating Travel | 10 Degree |
| Operation Type | Standard |
| Product Description | LIMIT SWITCH |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Reset Travel | 4 Degree |
| Standard | UL Listed,CSA Certified |
| Total Travel | 50 Degree |
| Type | Hazardous location limit switch;Standard, Non-Plug-In |
| UNSPSC | 39122213 |
| UPC | 78211322902 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
