| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10316H50 |
| Actuator | Rotating shaft |
| Actuator Head Type | Rotating Shaft |
| Additional Information | Maximum AC Current 10 Ampere; Maximum DC Current 10 Ampere; Enclosure Material Die-Cast Aluminum |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | 10316H50 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw terminal |
| Connection Type | Screw Terminal |
| Contact Configuration | 2 NC |
| Contact Rating | 10A at 240 Vac, 10A at Vdc;10 Ampere at 240 VAC |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Dimensions | 6.0600 IN X 4.0600 IN X 2.1900 IN |
| Directory | CIS |
| Enclosure | NEMA 1 |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 10316 GP LIMIT SWITCH;LIMIT SWITCH |
| Item Number | 20481 |
| Long Description | LIMIT SWITCH, 2 NC CONTACT CONFIGURATION; SCREW TERMINAL CONNECTION TYPE; 10 AMPERE AT 240 VAC CONTACT RATING; UL, CSA APPROVAL; NEMA 1 ENCLOSURE; ROTATING SHAFT ACTUATOR/HEAD TYPE; MAXIMUM AC CURRENT 10 AMPERE; MAXIMUM DC CURRENT 10 AMPERE |
| MSDS Form Number | * |
| Model | 10316H |
| Noun | * |
| Product Description | LIMIT SWITCH |
| Product Keywords | WEBREADY |

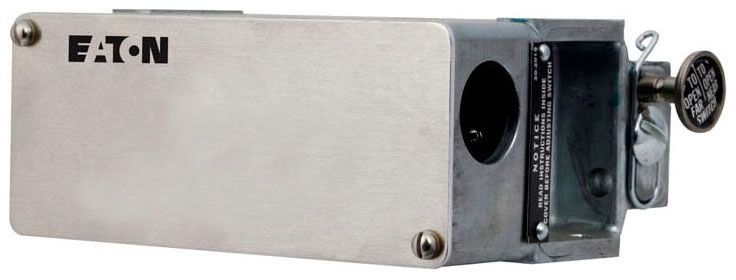

| Product Name | Limit switch |
| ProductLine | C-H |
| Type | Hazardous location limit switch |
| UNSPSC | 39122213 |
| UPC | 78211320481 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
