| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10316H700 |
| Actuator Head Type | NO |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | DIE CAST ZINC |
| Catalog Number | 10316H700 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw terminal |
| Connection Type | 1/2 INCH NPT |
| Contact Configuration | 1 NO-1 NC;SP-1NO-1NC |
| Contact Rating | 10A at 600Vac, 0.22A at 125Vdc;120/240/480/600 VAC 10 AMPERE, 125 VDC 0.22 AMPERE, 250 VDC 0.11 AMPERE |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Differential Travel | 12 DEG |
| Dimensions | 1.5500 IN X 1.7800 IN X 4.8400 IN |
| Directory | CIS |
| Enclosure | NEMA 1/4/13 |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |

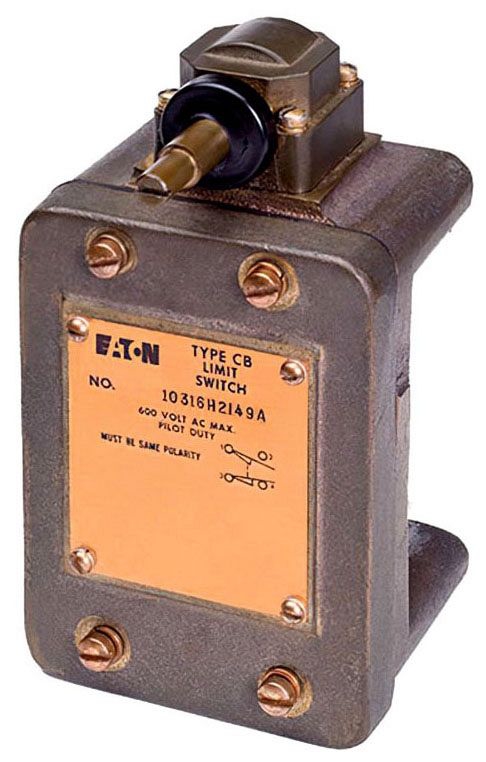

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 10316 TYPE L LIMIT SWITCH;LIMIT SWITCH |
| Item Number | 22998 |
| Long Description | LIMIT SWITCH, HEAVY DUTY NON PLUG IN TYPE; SP-1NO-1NC CONTACT CONFIGURATION; 1/2 INCH NPT CONNECTION TYPE; CLOCKWISE, SNAP OPERATION TYPE; 120/240/480/600 VAC 10 AMPERE, 125 VDC 0.22 AMPERE, 250 VDC 0.11 AMPERE CONTACT RATING; UL, CSA APPROVAL |
| MSDS Form Number | * |
| Model | 10316 |
| Noun | * |
| Operating Force | 1.1 LB-INCH |
| Operating Temperature | -20 TO 200 DEG F |
| Operating Temperature Maximum | -20 F |
| Operating Temperature Minimum | -20 F |
| Operation Type | CLOCKWISE, SNAP |
| Pretravel | 20 DEG |
| Product Description | LIMIT SWITCH |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Standard | UL Listed,CSA Certified,CE Marked |
| Total Travel | 140 DEG |
| Type | Hazardous location limit switch;HEAVY DUTY NON PLUG IN |
| UNSPSC | 39122213 |
| UPC | 78211322998 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
