| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 10316H89 |
| Additional Information | AC Current Rating 40 Amp (Make), 15 Amp (Break); DC Current Rating 0.5 Amp (Make/Break) |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | 10316H89 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46140 |
| Commodity Description | Severe Duty Limit Switches |
| Connection | Screw terminal |
| Connection Type | Screw Terminal |
| Contact Configuration | 2 NO-2 NC snap action;2NO-2NC, SPDT |
| Contact Rating | 20A make at 240 Vac, 0.2A at 240 Vdc;20 Amp at 240 Volt AC, 0.2 Amp at 240 Volt DC |
| CountryOfOrigin | MX |
| DDCATEGORY | 2184 |
| Dimensions | 2.4700 IN X 0.8100 IN X 1.2100 IN |
| Directory | CIS |
| Families | 2184 |
| Family Description | Severe Duty Limit Switches |

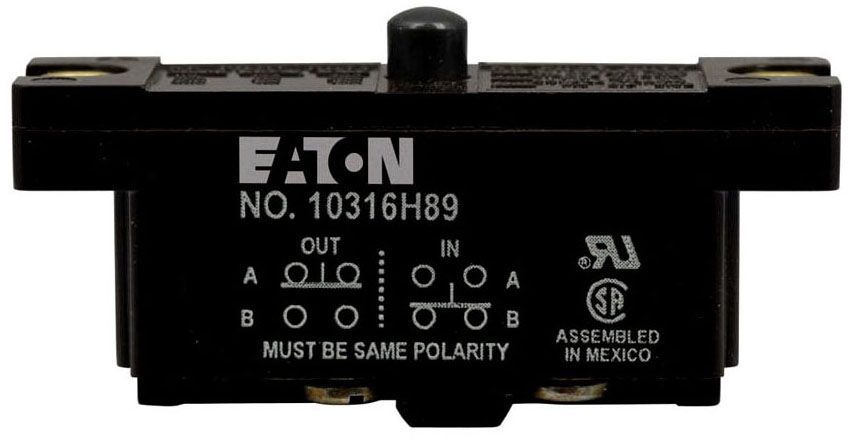

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 10316 PREC SNAP SW&DOOR I-LOCK;SNAP SW |
| Item Number | 20482 |
| Long Description | PRECISION LIMIT SWITCH, PRECISION TYPE; 2NO-2NC, SPDT CONTACT CONFIGURATION; SCREW TERMINAL CONNECTION TYPE; 20 AMP AT 240 VOLT AC, 0.2 AMP AT 240 VOLT DC CONTACT RATING; UL, CSA APPROVAL; -20 TO 200 DEG F OPERATING TEMPERATURE |
| MSDS Form Number | * |
| Model | 10316H, PS |
| Noun | * |
| Operating Temperature | -20 to 200 Deg F |
| Product Description | SNAP SW |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Standard | Contact Manufacturer |
| Type | Limit switch;Precision |
| UNSPSC | 39122213 |
| UPC | 78211320482 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
