| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 1351E-6504 |
| Additional Information | Includes Green LED (Output Indication), Yellow LED (Power Indication), Red LED (Alignment Indication) |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approval | UL 508, CSA |
| Base Price | 0.0000 |
| Body Material | Fiberglass Reinforced Plastic |
| Brand Name | Eaton |
| Catalog Number | 1351E-6504 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46230 |
| Commodity Description | Photoelectric Sensors |
| Connection | 5-pin mini connector |
| Connection Type | 5-Pin Mini Connector |
| CountryOfOrigin | CN |
| DDCATEGORY | 2192 |
| Dimensions | 1.9100 IN X 1.8100 IN X 4.1600 IN |
| Directory | CIS |
| Enclosure | IP67, IP69K |
| Families | 2192 |
| Family Description | Photoelectric Sensors |
| Field Of View | 2.8 Deg |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Eaton Enhanced 50 photoelectric sensor;10FT PH-E SEN |
| Item Number | 11177 |
| Load Current | 3 Ampere at 28/120/240 VAC |

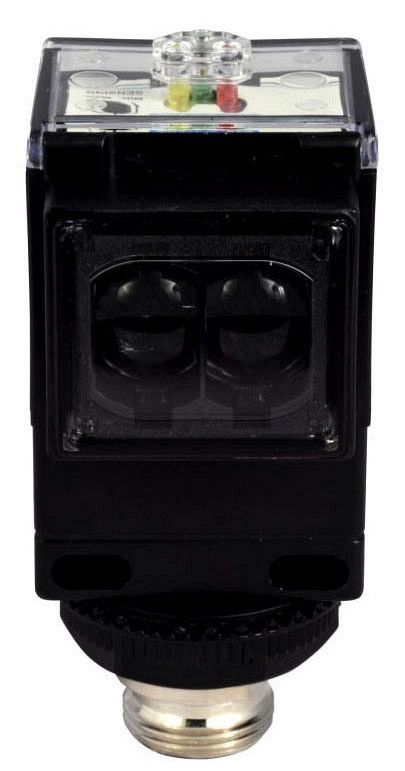

| Long Description | PHOTOELECTRIC SENSOR, DIFFUSE REFLECTIVE TYPE; 5-PIN MINI CONNECTOR CONNECTION TYPE; UL 508, CSA APPROVAL; 24 TO 240 VAC, 12 TO 240 VDC OPERATING VOLTAGE; IP67, IP69K ENCLOSURE; FIBERGLASS REINFORCED PLASTIC BODY MATERIAL |
| MSDS Form Number | * |
| Model | 50 |
| Noun | * |
| Operating Mode | Light/Dark |
| Operating Temperature | -13 to 131F (-25 to 55C);-13 to 131 Deg F |
| Operating Voltage | 24 to 240 VAC, 12 to 240 VDC |
| Output Configuration | SPDT EM Relay |
| Product Description | 10FT PH-E SEN |
| Product Keywords | WEBREADY |
| Product Name | Photoelectric sensors |
| ProductLine | C-H |
| Response Time | 15 Millisecond |
| Sensing Distance | 10 Ft |
| Standard | CSA Certified,Contact Manufacturer,RoHS Compliant |
| Type | Photoelectric sensor;Diffuse Reflective |
| UNSPSC | 39121528 |
| UPC | 78211611177 |
| Vendor Name | EATON CONTROLS/MULTIPLE METERING |
| Vendor Number | 782116 |
| Vendor Short Name | CH2 |
