| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | 3TA225FD |
| Accessory Type | Lug |
| Additional Information | Approval UL |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Base Price | 0.0000 |
| Body Material | Aluminum |
| Brand Name | Eaton |
| Catalog Number | 3TA225FD |
| Commerce Sector | Construction Materials |
| Commodity Code | 64120 |
| Commodity Description | Large Terminals & Connectors |
| Conductor Material | Copper/Aluminum |
| CountryOfOrigin | US |
| Current Rating | 225 A |
| DDCATEGORY | 597 |
| Dimensions | 2.2000 IN X 1.2000 IN X 0.5000 IN |
| Directory | CIS |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 225A FD COLLAR KIT_(3) TERMINALS AND;225A FD COLLAR KIT |
| Item Number | 22240 |

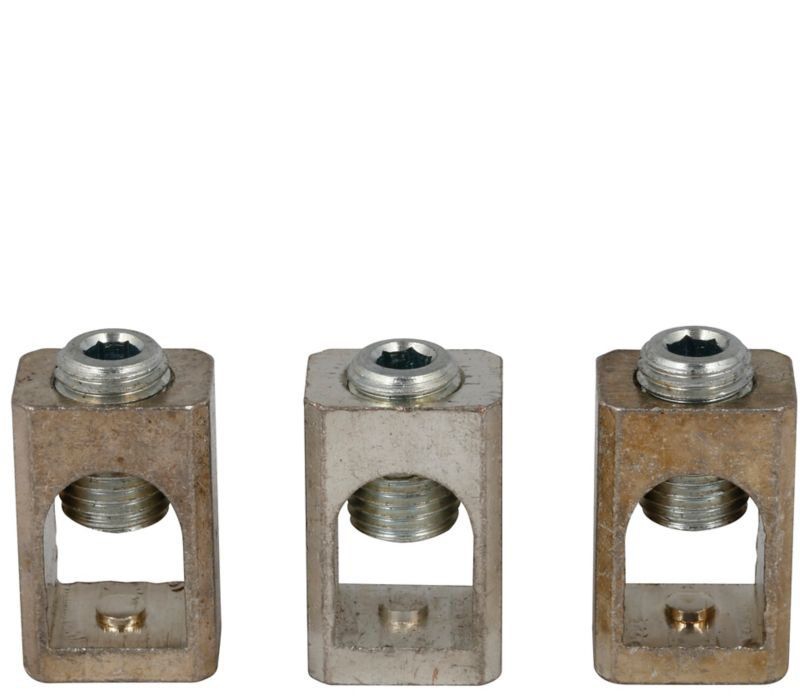

| Long Description | STANDARD TERMINAL, LINE AND LOAD LUG TYPE; FG FRAME MOLDED CASE CIRCUIT BREAKER USED ON; 225 AMP MAX. BREAKER CURRENT RATING; 4 AWG MIN. CONDUCTOR SIZE; 4/0 AWG MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; 1 CONDUCTOR(S) |
| MSDS Form Number | * |
| Maximum Breaker Current Rating | 225 Amp |
| Maximum Conductor Size | 4/0 AWG |
| Minimum Conductor Size | 4 AWG |
| Model | C, 3TA |
| Noun | * |
| Number Of Conductors | 1 |
| Product Description | 225A FD COLLAR KIT |
| Product Keywords | WEBREADY |
| Product Name | Molded case circuit breakers |
| ProductLine | C-H |
| Quantity | 3 |
| Standard | UL Listed,Contact Manufacturer |
| Type | Molded case circuit breaker accessory;Line and Load Lug |
| UNSPSC | 39121616 |
| UPC | 78667922240 |
| Used On | FG Frame Molded Case Circuit Breaker |
| Vendor Name | EATON METERING & DISTRIB |
| Vendor Number | 786679 |
| Vendor Short Name | CHD |
