| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | CSAS4F4CY2202 |
| Additional Information | Operating Temperature -25 to 80 Deg C; Number of Wires 4; Size 0.58 Inch Dia x 78.72 Inch L |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory;Sensor |
| Approval | UL, CUL |
| Base Price | 0.0000 |
| Brand Name | Eaton;Global Plus |
| Cable Type | 22 AWG PVC Jacket, Stranded Copper Conductor |
| Catalog Number | CSAS4F4CY2202 |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 46280 |
| Commodity Description | Sensor Cables |
| Connection | Micro-style straight female |
| Connector Type | Straight, Single Standard |
| CountryOfOrigin | US |
| Current Rating | 4 Ampere |
| DDCATEGORY | 2194 |
| Dimensions | 78.7200 IN X 0.5800 IN X 0.5800 IN |
| Directory | CIS |
| Enclosure | IP67 |
| Environmental Conditions | IP67 |
| Families | 2194 |
| Family Description | Sensor Cables |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Eaton Global Plus connector cable;SEN CONN CBL |
| Item Number | 05695 |
| Keyway Type | Dual |
| Length | 2 M |

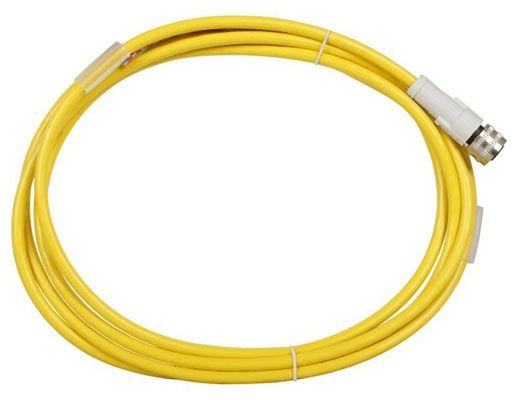

| Long Description | CONNECTOR CABLE, FEMALE TYPE; GOLD PLATED COPPER ALLOY CONTACT, ZINC DIE-CAST EPOXY COATED COUPLING NUT, NITRILE RUBBER O-RING MATERIAL; YELLOW COLOR; 2 M; 22 AWG PVC JACKET, STRANDED COPPER CONDUCTOR CABLE TYPE; UL, CUL APPROVAL; SENSOR APPLICATION |
| MSDS Form Number | * |
| Material | Gold Plated Copper Alloy Contact, Zinc Die-Cast Epoxy Coated Coupling Nut, Nitrile Rubber O-ring |
| Noun | * |
| Number Of Poles | 4 |
| Product Description | SEN CONN CBL |
| Product Keywords | WEBREADY |
| Product Name | Proximity sensors |
| ProductLine | C-H |
| Standard | UL Listed,CSA Certified |
| Type | Connector cable;Female |
| UNSPSC | 41111926 |
| UPC | 78211605695 |
| Vendor Name | EATON CONTROLS/MULTIPLE METERING |
| Vendor Number | 782116 |
| Vendor Short Name | CH2 |
| Voltage Rating | 320 VAC |
| Wire Code | 1-Red/Black 2-Red/White 3-Red 4-Green |
