| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | CSDR4A3CY2205 |
| Additional Information | TEMPERATURE RANGE -25 TO 90 DEG C; NUMBER OF WIRES 3 |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory;SENSOR |
| Approval | UL, CUL |
| Base Price | 0.0000 |
| Brand Name | Cutler-Hammer[R] |
| Cable Type | 22 AWG PVC JACKET, STRANDED COPPER CONDUCTOR |
| Catalog Number | CSDR4A3CY2205 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46280 |
| Commodity Description | Sensor Cables |
| Connection | Micro-style right angle female |
| Connector Type | 90 DEG, SINGLE STANDARD |
| CountryOfOrigin | DE |
| Current Rating | 4 AMPERE |
| DDCATEGORY | 2194 |
| Dimensions | 196.8000 IN X 0.5800 IN X 1.0000 IN |
| Directory | CIS |
| Enclosure | IP67 |
| Environmental Conditions | IP67 |
| Families | 2194 |
| Family Description | Sensor Cables |

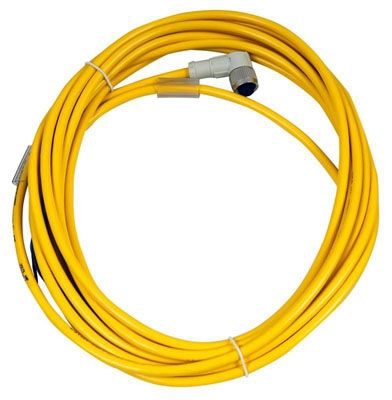

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CORDSET,DC,RA,4P 3W,5M,YEL;SEN CONN CBL |
| Item Number | 05679 |
| Keyway Type | SINGLE |
| Length | 5 M |
| Length In Meters | 5 |
| Long Description | CONNECTOR CABLE, FEMALE TYPE; GOLD PLATED COPPER ALLOY CONTACT, ZINC DIE CAST EPOXY COATED COUPLING NUT, NITRILE RUBBER O-RING MATERIAL; 5 M; 5 LENGTH IN METERS; 22 AWG PVC JACKET, STRANDED COPPER CONDUCTOR CABLE TYPE; UL, CUL APPROVAL |
| MSDS Form Number | * |
| Material | GOLD PLATED COPPER ALLOY CONTACT, ZINC DIE CAST EPOXY COATED COUPLING NUT, NITRILE RUBBER O-RING |
| Noun | * |
| Number Of Poles | 4 |
| Product Description | SEN CONN CBL |
| Product Keywords | WEBREADY |
| Product Name | Proximity sensors |
| ProductLine | C-H |
| Standard | UL Listed,CSA Certified |
| Type | Connector cable;FEMALE |
| UNSPSC | 41111926 |
| UPC | 78211605679 |
| Vendor Name | EATON CONTROLS/MULTIPLE METERING |
| Vendor Number | 782116 |
| Vendor Short Name | CH2 |
| Voltage Rating | 320 VDC |
| Wire Code | 1-BROWN 2-NO WIRE 3-BLUE 4-BLACK |
