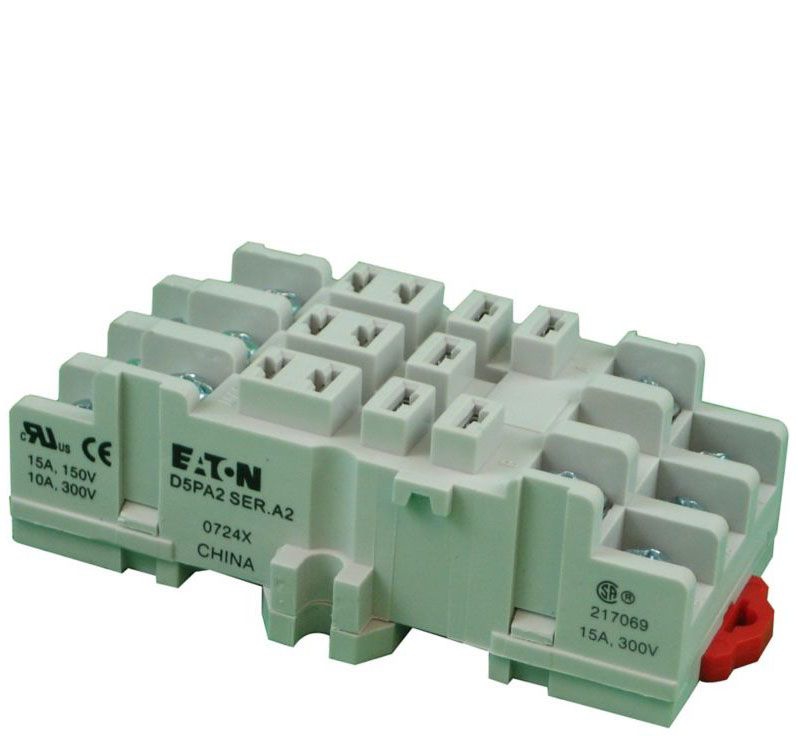

| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | D5PA2 |
| Accessory Type | Socket |
| Additional Information | Wire Size 22 to 12 AWG (Solid/Stranded); Mounting Torque Rating 8 to 10 Inch-Pound |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Catalog Number | D5PA2 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42110 |
| Commodity Description | General Purpose Plug-In Relays & Accessories |
| Contact Rating | 300 Volt at 15 Amp |
| CountryOfOrigin | CN |
| DDCATEGORY | 2143 |
| Dimensions | 3.1000 IN X 1.4000 IN X 0.9000 IN |
| Directory | CIS |
| Families | 2143 |
| Family Description | General Purpose Plug-In Relays & Accessories |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | D5 rl SOCKET SCREW TERM-DIN OR PANEL MTG;RELAY BASE |
| Item Number | 40385 |
| Long Description | PLUG-IN RELAY SOCKET, STANDARD TYPE; D5RR2/D5RF2/D5RR3/D5RF3/TRNB/TRFB/D5PR2/D5PR3/D5PF2/D5PF3 SERIES GENERAL PURPOSE AND TIMING RELAY USED ON; 300 VOLT AT 15 AMP CONTACT RATING; UL, CSA, CE APPROVAL; DIN RAIL/PANEL MOUNTING; 2/3 POLE(S) |
| MSDS Form Number | * |
| Model | D5 |
| Mounting | DIN rail, screw;DIN Rail/Panel |
| Noun | * |
| Number Of Poles | 2/3 |
| Product Description | RELAY BASE |
| Product Keywords | WEBREADY |
| Product Name | Socket relay |
| ProductLine | C-H |
| Standard | CSA Certified,cRUus,CE Marked,RoHS Compliant |
| Terminal Type | Blade, 0.187 Inch Solder, Quick Connect, 11-Pin, Clamp Screw |
| Type | General-purpose relay;Standard |
| UNSPSC | 39122326 |
| UPC | 78211440385 |
| Used On | D5RR2/D5RF2/D5RR3/D5RF3/TRNB/TRFB/D5PR2/D5PR3/D5PF2/D5PF3 Series General Purpose and Timing Relay |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
