EATON CONTROLS (CUTLER-HAMMER)
GP PLUG-IN RELAY

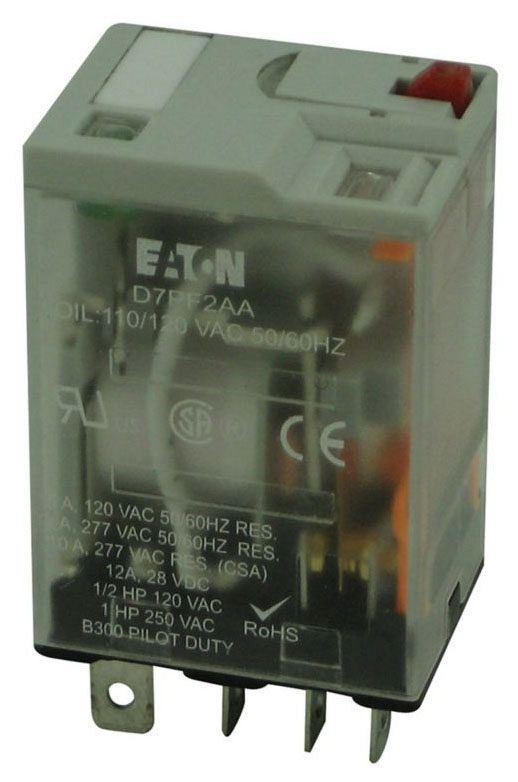

Mouse over image to zoom, click to enlarge

Description:
GP PLUG-IN RELAY

UPC:  78211648482

Part Number: D7PF2AT1

UNSPSC: 39122326

Status:  UNKNOWN

Your Price:  $32.75 / EA


Quantity  EA

Specifications

Manufacturer Name EATON CONTROLS (CUTLER-HAMMER)
MfgPartNo D7PF2AT1
Additional Information Coil Resistance 650 Ohm; Includes LED, Test Button, Flag Indicator, Lock Down Door, Finger Grip Cover, ID Tag
Application Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Approval UL (Canada and Us), CSA, CE
Base Price 0.0000
Brand Name Eaton
Catalog Number D7PF2AT1
Coil Voltage 24 VDC
Commerce Sector Construction Materials
Commodity Code 42110
Commodity Description General Purpose Plug-In Relays & Accessories
Contact Configuration DPDT
Contact Current Rating 15 Ampere at 120 VAC, 12 Ampere at 277 VAC/28 VDC, 0.5 Ampere at 220 VDC
Contact Rating 15 A
Contact Voltage Rating 120/277 VAC, 28/220 VDC
CountryOfOrigin CN
DDCATEGORY 2143
Dimensions 2.0000 IN X 1.0000 IN X 1.0000 IN
Directory CIS
Families 2143
Family Description General Purpose Plug-In Relays & Accessories
Image Location * Image
Industry ELX
InvoiceDescription DPDT RELAY - 24 VDC COIL;GP PLUG-IN RELAY
Item Number 48482
Long Description GENERAL PURPOSE PLUG-IN RELAY, DC OPERATED TYPE; DPDT CONTACT CONFIGURATION; UL (CANADA AND US), CSA, CE APPROVAL; PLUG-IN, DIN RAIL/PANEL MOUNTING; SCREW TERMINAL TYPE; 24 VDC COIL VOLTAGE
MSDS Form Number *
Model D7PF
Mounting Plug-In, DIN Rail/Panel
Noun *
Product Description GP PLUG-IN RELAY
Product Keywords WEBREADY
Product Name Socket relay
ProductLine C-H
Standard cRUus,CSA file No. LR217069,UL Listed file E37317,UL Listed file E65657,CSA file No. LR217017,CE Marked,RoHS Compliant
Terminal Type Screw
Type General-purpose relay;DC Operated
UNSPSC 39122326
UPC 78211648482
Vendor Name EATON CONTROLS/MULTIPLE METERING
Vendor Number 782116
Vendor Short Name CH2

Resources

CatalogNumber D7PF2AT1
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
