| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | DH361NWK316 |
| AC Voltage Rating | 480 V STAR/277 V, 600 V |
| Amperage Rating | 30 A |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL 50, UL 98 |
| Base Price | 0.0000 |
| Brand Name | Cutler-Hammer[R] |
| Catalog Number | DH361NWK316 |
| Commerce Sector | Construction Materials |
| Commodity Code | 31310 |
| Commodity Description | Fusible Heavy Duty Safety Switches |
| CountryOfOrigin | US |
| Current Rating | 30 AMPERE |
| DC Voltage Rating | 250 V |
| DDCATEGORY | 1706 |
| Depth | 10 in |
| Directory | CIS |
| Enclosure | NEMA 4X |
| Enclosure Material | 316 STAINLESS STEEL |
| Families | 1706 |
| Family Description | Fusible Heavy Duty Safety Switches |
| Fuse Provision | FUSIBLE |
| Fuse Type | CLASS H |
| Height | 17.88 in |

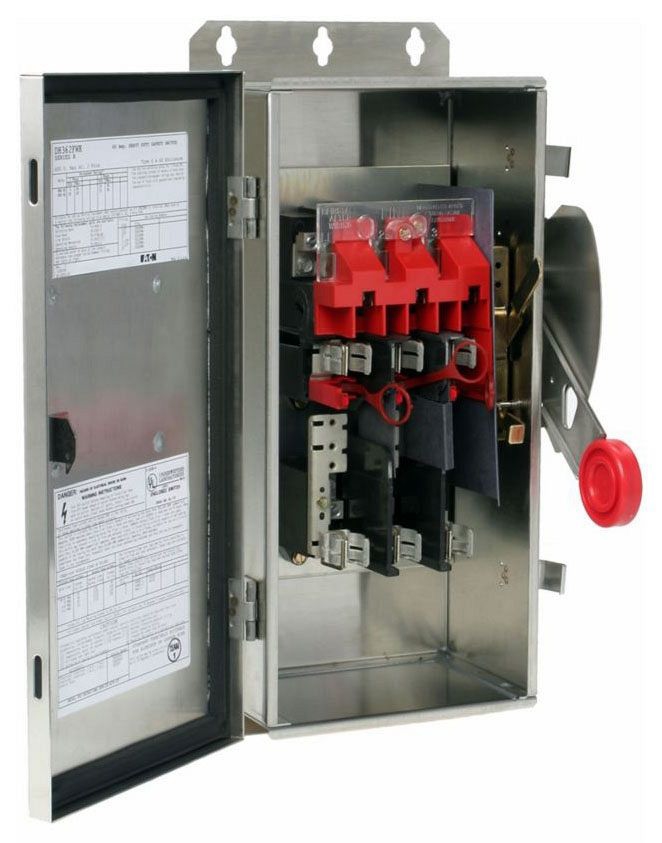

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 30A/3P HD FSBL SftySw W/NEUT 600V N4X SS;30A 600V SFTY SW |
| Item Number | 49005 |
| Long Description | FUSIBLE SAFETY SWITCH, HEAVY DUTY TYPE; 8.13 INCH W X 10 INCH D X 17.88 INCH H SIZE; 316 STAINLESS STEEL ENCLOSURE MATERIAL; 4 WIRE(S); UL 50, UL 98 APPROVAL; NEMA 4X ENCLOSURE; 30 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material | Stainless Steel 316 |
| NEMA Rating | 4X |
| Neutral Type | SOLID |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Power Rating | 7 1/2 HP AT 480 VAC, 10 HP AT 600 VAC 1 PHASE, 15 HP AT 480 VAC, 20 HP AT 600 VAC 3 PHASE |
| Product Description | 30A 600V SFTY SW |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | C-H |
| Size | 8.13 INCH W X 10 INCH D X 17.88 INCH H |
| Special Features | Corrosion resistant |
| Standard | UL Listed,NEC 230.62 (C) Compliant Barrier |
| Type | Fusible safety switch;HEAVY DUTY |
| UNSPSC | 39122205 |
| UPC | 78211649005 |
| Vendor Name | EATON CONTROLS/MULTIPLE METERING |
| Vendor Number | 782116 |
| Vendor Short Name | CH2 |
| Voltage Rating | 600 V |
| Width | 8.13 in |
