| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | DH361UWKX |
| AC Voltage Rating | 480 V STAR/277 V, 600 V |
| Additional Information | APPLICABLE STANDARD NEMA KS-1 |
| Amperage Rating | 30 A |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | DH361UWKX |
| Commerce Sector | Construction Materials |
| Commodity Code | 31320 |
| Commodity Description | Non-Fusible Heavy Duty Safety Switches |
| CountryOfOrigin | US |
| Current Rating | 30 AMPERE |
| DC Voltage Rating | 250 V |
| DDCATEGORY | 1707 |
| Dimensions | 10.2200 IN X 8.7600 IN X 14.1400 IN |
| Directory | CIS |
| Enclosure | NEMA 4X |
| Enclosure Material | 304 STAINLESS STEEL |
| Families | 1707 |
| Family Description | Non-Fusible Heavy Duty Safety Switches |
| Fuse Provision | NON FUSIBLE |

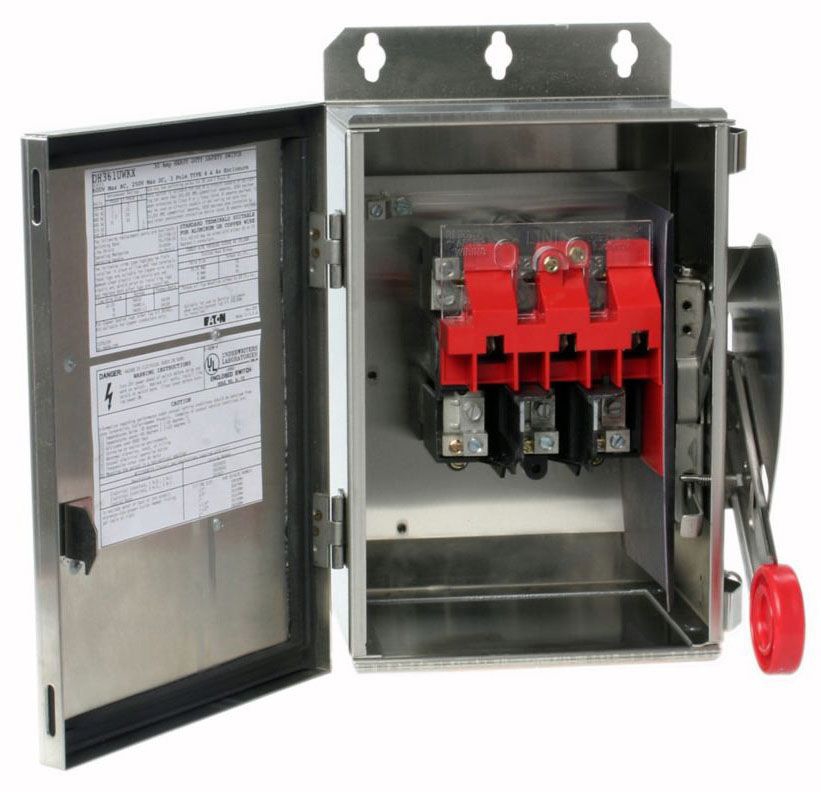

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 30A/3P EnviroLine NF Safety SW 600V;30A UNFUS 600V SW |
| Item Number | 22183 |
| Long Description | SAFETY SWITCH, HEAVY DUTY SAFETY TYPE; 8-1/8 INCH W X 10 INCH D X 12-1/8 INCH H SIZE; 304 STAINLESS STEEL ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 4X ENCLOSURE; 30 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material | Stainless Steel |
| Model | DH |
| NEMA Rating | NEMA 4X |
| Neutral Type | NO |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Power Rating | 7-1/2 HP AT 480 VAC 1 PHASE, 10 HP AT 600 VAC 1 PHASE, 20 HP AT 480 VAC 3 PHASE, 30 HP AT 600 VAC 3 PHASE, 5 HP AT 250 VDC |
| Product Description | 30A UNFUS 600V SW |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | C-H |
| Size | 8-1/8 INCH W X 10 INCH D X 12-1/8 INCH H |
| Special Features | EnviroLine stainless steel enclosure and mechanism |
| Standard | UL Listed |
| Type | Non-fusible safety switch;HEAVY DUTY SAFETY |
| UNSPSC | 39122205 |
| UPC | 78211422183 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
| Voltage Rating | 600 V |
