| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | DH364NGK |
| AC Voltage Rating | 480 Volt AC Star/277 Volt AC, 600 Volt AC Star/347 Volt AC |
| Amperage Rating | 200 A |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL 98 |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | DH364NGK |
| Commerce Sector | Construction Materials |
| Commodity Code | 31310 |
| Commodity Description | Fusible Heavy Duty Safety Switches |
| CountryOfOrigin | US |
| Current Rating | 200 Amp |
| DC Voltage Rating | 250 Volt |
| DDCATEGORY | 1706 |
| Dimensions | 30.0000 IN X 18.0000 IN X 9.5000 IN |
| Directory | CIS |
| Enclosure | NEMA 1 |
| Enclosure Material | Steel |
| Families | 1706 |
| Family Description | Fusible Heavy Duty Safety Switches |
| Finish | Painted |
| Fuse Provision | Fusible |
| Fuse Type | Cartridge, Class H, Time Delay |

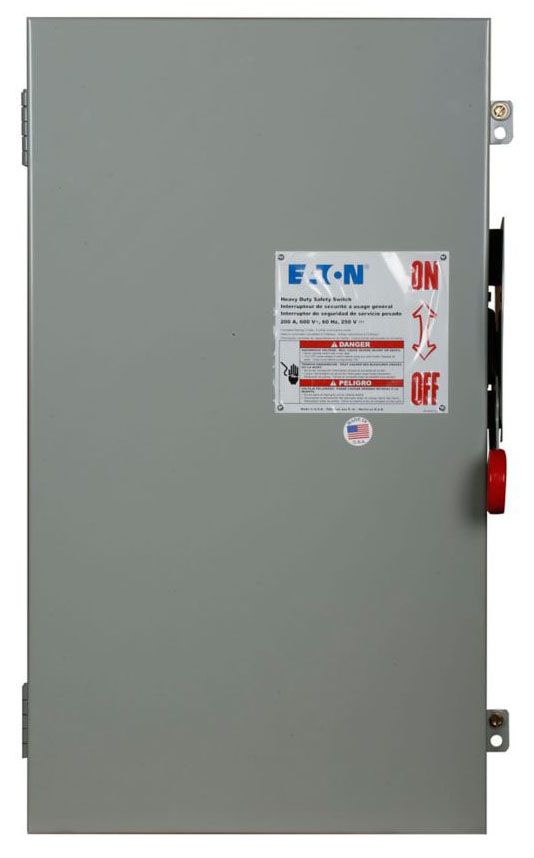

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HDST, 200 A, NEMA 1, 600 V, 3-pole;200A 600V SFTY SW |
| Item Number | 20682 |
| Long Description | SAFETY SWITCH, HEAVY DUTY SAFETY TYPE; 16 INCH WIDTH X 11.25 INCH DEPTH X 27.63 INCH HEIGHT SIZE; PAINTED FINISH; STEEL ENCLOSURE MATERIAL; 4 WIRE(S); UL 98 APPROVAL; NEMA 1 ENCLOSURE; 200 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Steel |
| Model | DH |
| NEMA Rating | NEMA 1 |
| Neutral Type | Solid |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Power Rating | 50 HP at 480/600 Volt AC 1-Phase, 125 HP at 480 Volt AC 3-Phase, 150 HP at 600 Volt AC 3-Phase (Time Delay Fuse) |
| Product Description | 200A 600V SFTY SW |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | C-H |
| Size | 16 Inch Width x 11.25 Inch Depth x 27.63 Inch Height |
| Standard | UL Listed |
| Type | Fusible safety switch;Heavy Duty Safety |
| UNSPSC | 39122205 |
| UPC | 78211320682 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Voltage Rating | 600 V |
