| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | DH367UDKW |
| AC Voltage Rating | 240/480/600 V |
| Additional Information | APPLICABLE STANDARD NEMA KS-1; INCLUDES UPPER VIEWING WINDOW |
| Amperage Rating | 800 A |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL |
| Base Price | 0.0000 |
| Catalog Number | DH367UDKW |
| Commerce Sector | Construction Materials |
| Commodity Code | 31320 |
| Commodity Description | Non-Fusible Heavy Duty Safety Switches |
| CountryOfOrigin | US |
| Current Rating | 800 AMPERE |
| DC Voltage Rating | 250/600 V |
| DDCATEGORY | 1707 |
| Depth | 12.79 in |
| Directory | CIS |
| Enclosure | NEMA 12 |
| Families | 1707 |
| Family Description | Non-Fusible Heavy Duty Safety Switches |
| Fuse Provision | NON FUSIBLE |
| Height | 71.72 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 800A/3P NF Wdw Sfty Sw 600V N12;800A 600V NON-FUS SW |
| Item Number | 19587 |
| Long Description | SAFETY SWITCH, HEAVY DUTY SAFETY TYPE; 25-3/8 INCH W X 14-1/4 INCH D X 71-3/4 INCH H SIZE; 3 WIRE(S); UL APPROVAL; NEMA 12 ENCLOSURE; 800 AMPERE CURRENT RATING; 500 HP AT 480/600 VAC 3 PHASE POWER RATING; 3 POLE(S); NO NEUTRAL TYPE |
| MSDS Form Number | * |
| Material | Galvanized Steel |
| Model | DH |
| NEMA Rating | 12;3R |
| Neutral Type | NO |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Power Rating | 500 HP AT 480/600 VAC 3 PHASE |
| Product Description | 800A 600V NON-FUS SW |
| Product Keywords | WEBREADY |

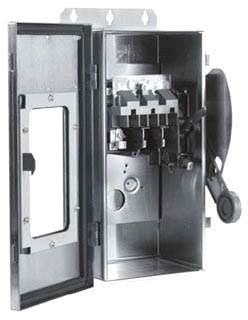

| Product Name | Safety switch |
| ProductLine | C-H |
| Size | 25-3/8 INCH W X 14-1/4 INCH D X 71-3/4 INCH H |
| Special Features | Enhanced visible blade |
| Standard | UL Listed,NEC 230.62 (C) Compliant Barrier |
| Type | Non-fusible safety switch;HEAVY DUTY SAFETY |
| UNSPSC | 39122205 |
| UPC | 78211419587 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
| Voltage Rating | 600 V |
| Width | 26.35 in |
