| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | DT361UGK |
| AC Voltage Rating | 600 Volt |
| Additional Information | Application Service Entrance, Industrial, Commercial; Applicable Standard NEC 702 |
| Amperage Rating | 30 A |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | DT361UGK |
| Commerce Sector | Construction Materials |
| Commodity Code | 31420 |
| Commodity Description | Non-Fusible Double Throw Safety Switches |
| CountryOfOrigin | US |
| Current Rating | 30 Amp |
| DC Voltage Rating | 250 Volt |
| DDCATEGORY | 1710 |
| Dimensions | 11.1900 IN X 11.9500 IN X 25.0200 IN |
| Directory | CIS |
| Enclosure | NEMA 1 |
| Enclosure Material | Steel |
| Families | 1710 |
| Family Description | Non-Fusible Double Throw Safety Switches |
| Finish | Painted |
| Fuse Provision | Non-Fusible |

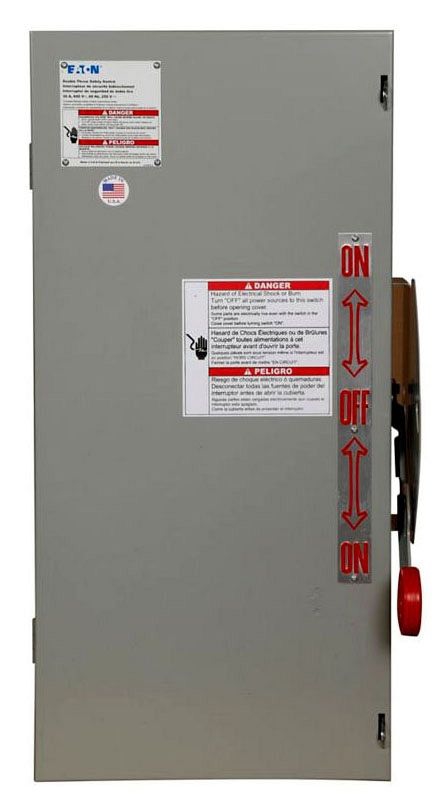

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | HDDT, 30 A, N1, 3-pole, 600 V, 250 Vdc;3P 30A HD SFTY SW |
| Item Number | 42635 |
| Long Description | HEAVY DUTY SAFETY SWITCH, HEAVY DUTY SAFETY TYPE; 11.94 INCH WIDTH X 9.88 INCH DEPTH X 24.63 INCH HEIGHT SIZE; PAINTED FINISH; STEEL ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 1 ENCLOSURE; 30 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Steel |
| Model | DT |
| Neutral Type | No |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Power Rating | 7-1/2 HP at 480 Volt AC 1-Phase, 10 HP at 600 Volt AC 1-Phase, 20 HP at 480 Volt AC 3-Phase, 30 HP at 600 Volt AC 3-Phase, 5 HP at 250 Volt DC |
| Product Description | 3P 30A HD SFTY SW |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | C-H |
| Size | 11.94 Inch Width x 9.88 Inch Depth x 24.63 Inch Height |
| Standard | UL Listed |
| Type | Double-throw non-fused safety switch;Heavy Duty Safety |
| UNSPSC | 39122205 |
| UPC | 78211342635 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Voltage Rating | 600//250 VAC//VDC |
