| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | DT363UGK |
| AC Voltage Rating | 600 V |
| Additional Information | Applicable Standard NEMA KS-1, NEC 702; Application Service Entrance, Industrial, Commercial |
| Amperage Rating | 100 A |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls |
| Approval | UL |
| Base Price | 0.0000 |
| Catalog Number | DT363UGK |
| Commerce Sector | Construction Materials |
| Commodity Code | 31420 |
| Commodity Description | Non-Fusible Double Throw Safety Switches |
| CountryOfOrigin | US |
| Current Rating | 100 Ampere |
| DC Voltage Rating | 250 V |
| DDCATEGORY | 1710 |
| Depth | 11.19 in |
| Directory | CIS |
| Enclosure | NEMA 1 |
| Enclosure Material | Steel |
| Families | 1710 |
| Family Description | Non-Fusible Double Throw Safety Switches |
| Finish | Painted |
| Fuse Provision | Non-Fusible |
| Height | 25.02 in |

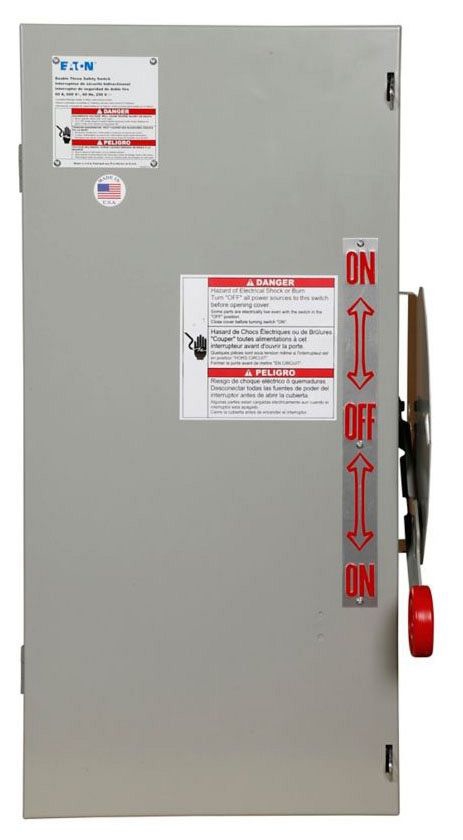

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 100A/3P HD NF DT Sw 600V N1;3P 100A HD SFTY SW |
| Item Number | 42641 |
| Long Description | HEAVY DUTY SAFETY SWITCH, HEAVY DUTY SAFETY TYPE; 11.94 INCH W X 9.88 INCH D X 24.63 INCH H SIZE; PAINTED FINISH; STEEL ENCLOSURE MATERIAL; 3 WIRE(S); UL APPROVAL; NEMA 1 ENCLOSURE; 100 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material | Painted Steel |
| Model | DT |
| Neutral Type | No |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Power Rating | 40 HP at 480 VAC 1-Phase, 50 HP at 600 VAC 1-Phase, 75 HP at 480 VAC 3-Phase, 100 HP at 600 VAC 3-Phase, 20 HP at 250 VDC (Time Delay Fuse) |
| Product Description | 3P 100A HD SFTY SW |
| Product Keywords | WEBREADY |
| Product Name | Safety switch |
| ProductLine | C-H |
| Size | 11.94 Inch W x 9.88 Inch D x 24.63 Inch H |
| Standard | UL Listed |
| Type | Double-throw non-fused safety switch;Heavy Duty Safety |
| UNSPSC | 39122205 |
| UPC | 78211342641 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Voltage Rating | 600 Vac, 250 Vdc |
| Width | 11.95 in |
