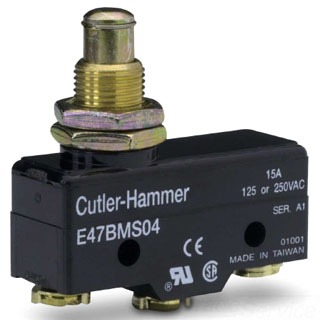

| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E47BMS04 |
| Actuator | Extended straight plunger |
| Actuator Head Type | Extended Straight Plunger |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Approval | UL, CSA |
| Body Material | Mineral Filled Phenolic |
| Catalog Number | E47BMS04 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46150 |
| Commodity Description | Miniature & Snap Action Limit Switches |
| Connection | Screw terminal |
| Connection Type | Screw Terminal |
| Contact Configuration | 1-SPDT (form C);SPDT |
| Contact Rating | 15A at 250 Vac, 6A at 30 Vdc;250 Volt AC at 15 Amp, 30 Volt DC at 6 Amp |
| CountryOfOrigin | TW |
| DDCATEGORY | 2185 |
| Differential Travel | 0.002 Inch |
| Dimensions | 1.9400 IN X 0.6900 IN X 1.3600 IN |
| Directory | CIS |
| Enclosure | NEMA 1 |
| Families | 2185 |
| Family Description | Miniature & Snap Action Limit Switches |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | Eaton E47 limit switch;PRECISION L-SW |
| Item Number | 77088 |
| Long Description | PRECISION LIMIT SWITCH, COMPACT, PRECISION TYPE; SPDT CONTACT CONFIGURATION; SCREW TERMINAL CONNECTION TYPE; 250 VOLT AC AT 15 AMP, 30 VOLT DC AT 6 AMP CONTACT RATING; UL, CSA APPROVAL; NEMA 1 ENCLOSURE; MINERAL FILLED PHENOLIC BODY MATERIAL |
| MSDS Form Number | * |
| Model | E47 |
| Noun | * |
| Operating Force | 12.3 Ounce |
| Operating Temperature | -13 to 176 Deg F |
| Operating Temperature Maximum | -13 F |
| Operating Temperature Minimum | -13 F |
| Operating Travel | 0.217 Inch |
| Pretravel | 0.016 Inch |
| Product Description | PRECISION L-SW |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Standard | UL Listed,CSA Certified |
| Type | Limit switch;Compact, Precision |
| UNSPSC | 39122213 |
| UPC | 78211377088 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
