| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E50AW2 |
| Actuator Head Type | NO |
| Additional Information | APPLICABLE STANDARD IEC 947-5-1 |
| Application | Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL, CSA, CE, TUV |
| Base Price | 0.0000 |
| Body Material | DIE CAST ZINC |
| Catalog Number | E50AW2 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46130 |
| Commodity Description | Heavy Duty Limit Switches |
| Connection | Screw terminal |
| Connection Type | 5 PIN RECEPTACLE |
| Contact Configuration | 1 NO-1 NC;SP-1NO-1NC |
| Contact Rating | 10A at 240Vac, 1A at 250Vdc;120/240/480/600 VAC 10 AMPERE, 125/250 VDC 1 AMPERE |
| CountryOfOrigin | MX |
| DDCATEGORY | 2183 |
| Differential Travel | 6 DEG |
| Dimensions | 4.2200 IN X 1.5400 IN X 2.2500 IN |
| Directory | CIS |
| Enclosure | NEMA 1/3/3S/4/4X/6/6P/13, IP67 |
| Families | 2183 |
| Family Description | Heavy Duty Limit Switches |

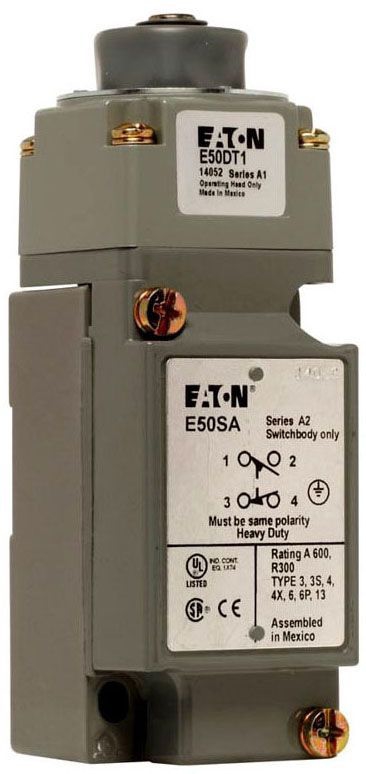

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | E50 HEAVY DUTY LIMIT SWITCH;HD PLUG-IN L-SW |
| Item Number | 45360 |
| Long Description | HEAVY DUTY PLUG-IN LIMIT SWITCH, HEAVY DUTY PLUG IN TYPE; SP-1NO-1NC CONTACT CONFIGURATION; 5 PIN RECEPTACLE CONNECTION TYPE; SPRING RETURN, SNAP OPERATION TYPE; 120/240/480/600 VAC 10 AMPERE, 125/250 VDC 1 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Model | E50 |
| Noun | * |
| Operating Force | 2 LB-INCH |
| Operating Temperature | 14 TO 250 DEG F |
| Operating Temperature Maximum | 14 F |
| Operating Temperature Minimum | 14 F |
| Operation Type | SPRING RETURN, SNAP |
| Pretravel | 10 DEG |
| Product Description | HD PLUG-IN L-SW |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Standard | CSA Certified,UL Listed,CE Marked |
| Total Travel | 15 DEG |
| Type | Heavy duty plug-in limit switch;HEAVY DUTY PLUG IN |
| UNSPSC | 39122213 |
| UPC | 78211345360 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
