| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E50BR1 |
| Actuator | Side rotary, momentary spring return |
| Actuator Head Type | Side Rotary |
| Application | Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Body Material | Die-Cast Zinc |
| Catalog Number | E50BR1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46130 |
| Commodity Description | Heavy Duty Limit Switches |
| Connection | Screw terminal |
| Connection Type | Screw Terminal |
| Contact Configuration | 2 NO-2 NC;2NO-2NC |
| Contact Rating | 10A at 240 Vac, 1A at 250 Vdc;240 Volt AC at 10 Amp, 250 Volt DC at 1 Amp |
| CountryOfOrigin | MX |
| DDCATEGORY | 2183 |
| Dimensions | 4.2200 IN X 1.5400 IN X 2.2500 IN |
| Directory | CIS |
| Enclosure | NEMA 1/3/3S/4/4X/6/6P/13, IP67 |
| Families | 2183 |
| Family Description | Heavy Duty Limit Switches |

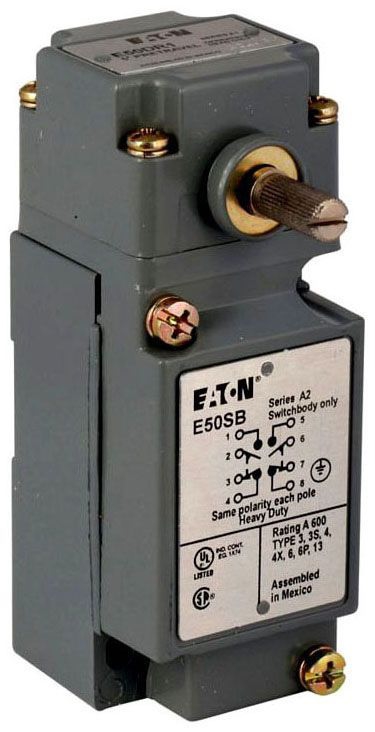

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | E50 HEAVY DUTY LIMIT SWITCH;HD PLUG-IN L-SW |
| Item Number | 29055 |
| Long Description | HEAVY DUTY PLUG-IN LIMIT SWITCH, HEAVY DUTY, PLUG-IN TYPE; 2NO-2NC CONTACT CONFIGURATION; SCREW TERMINAL CONNECTION TYPE; SPRING RETURN, CLOCKWISE/COUNTERCLOCKWISE, STANDARD OPERATION TYPE; 240 VOLT AC AT 10 AMP, 250 VOLT DC AT 1 AMP CONTACT RATING |
| MSDS Form Number | * |
| Model | E50 |
| Noun | * |
| Operating Temperature | 10 to 200 Deg F |
| Operating Temperature Maximum | 10 F |
| Operating Temperature Minimum | 10 F |
| Operation Type | Spring Return, Clockwise/Counterclockwise, Standard |
| Pretravel | 5 Degree |
| Product Description | HD PLUG-IN L-SW |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Standard | CSA Certified,UL Listed,RoHS Compliant,CE Marked |
| Total Travel | 90 Degree |
| Type | Heavy duty plug-in limit switch;Heavy Duty, Plug-In |
| UNSPSC | 39122213 |
| UPC | 78211329055 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
