| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E50DR1 |
| Additional Information | Enclosure Material Die-Cast Zinc |
| Application | Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL, CSA, CE |
| Catalog Number | E50DR1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46170 |
| Commodity Description | Limit Switch Heads |
| CountryOfOrigin | MX |
| DDCATEGORY | 2187 |
| Depth | 1.54 in |
| Dimensions | 1.0500 IN X 1.5400 IN X 2.4600 IN |
| Directory | CIS |
| Families | 2187 |
| Family Description | Limit Switch Heads |
| Height | 2.46 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | E50 HEAVY DUTY LIMIT SWITCH;L-SW OPRTG HEAD |
| Item Number | 29056 |

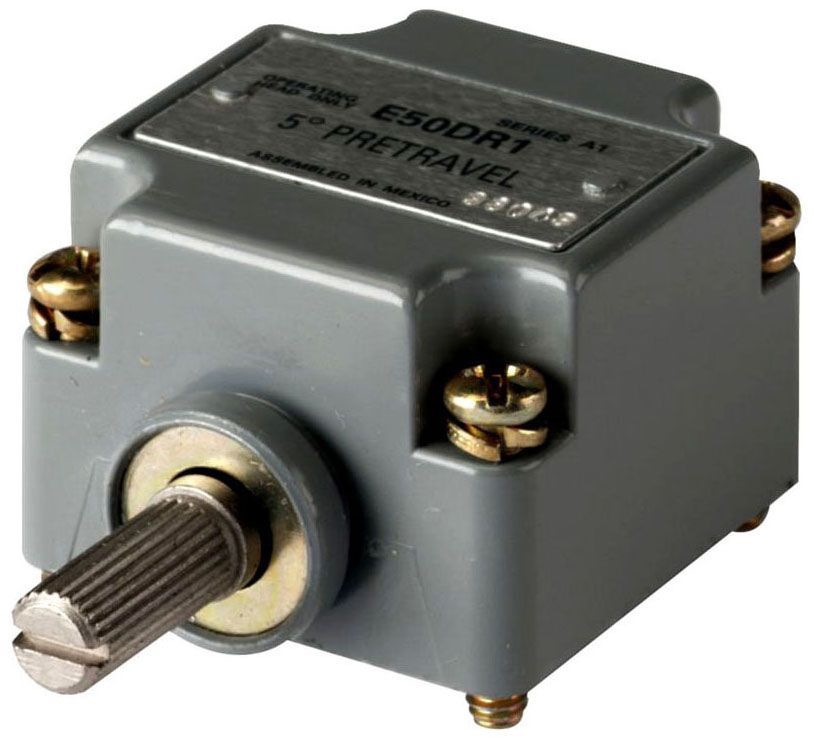

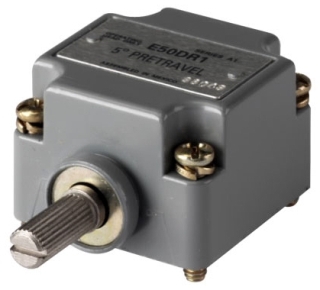

| Long Description | LIMIT SWITCH OPERATING HEAD, SIDE ROTARY TYPE; E50/E50 6P/10316 SERIES LIMIT SWITCH USED ON; CLOCKWISE/COUNTERCLOCKWISE CONVERTIBLE, SPRING RETURN, STANDARD OPERATION TYPE; UL, CSA, CE APPROVAL; 10 TO 200 DEG F (WITH/WITHOUT CABLE) OPERATING TEMPERATURE |
| MSDS Form Number | * |
| Material | Die cast zinc |
| Model | E50 |
| Noun | * |
| Operating Force | 3 Inch-Pound |
| Operating Temperature | 10 to 200 Deg F (With/Without Cable) |
| Operating Temperature Maximum | 10 F |
| Operating Temperature Minimum | 10 F |
| Operating Travel | 5 Degree |
| Operation Type | Clockwise/Counterclockwise Convertible, Spring Return, Standard |
| Product Description | L-SW OPRTG HEAD |
| Product Keywords | WEBREADY |
| Product Name | Switch part or accessory |
| ProductLine | C-H |
| Reset Travel | 2 Degree |
| Standard | UL Recognized,CSA Certified,UL Listed,RoHS Compliant,CE Marked |
| Total Travel | 90 Degree |
| Type | Heavy duty plug-in limit switch;Side Rotary |
| UNSPSC | 39122221 |
| UPC | 78211329056 |
| Used On | E50/E50 6P/10316 Series Limit Switch |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Width | 1.54 in |
