| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E50DT1 |
| Additional Information | Enclosure Material Die-Cast Zinc |
| Application | Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL, CSA, CE |
| Base Price | 0.0000 |
| Catalog Number | E50DT1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46170 |
| Commodity Description | Limit Switch Heads |
| CountryOfOrigin | MX |
| DDCATEGORY | 2187 |
| Depth | 1.54 in |
| Dimensions | 1.4800 IN X 1.5400 IN X 1.7800 IN |
| Directory | CIS |
| Families | 2187 |
| Family Description | Limit Switch Heads |
| Height | 1.78 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | E50 HEAVY DUTY LIMIT SWITCH;L-SW OPRTG HEAD |
| Item Number | 29059 |

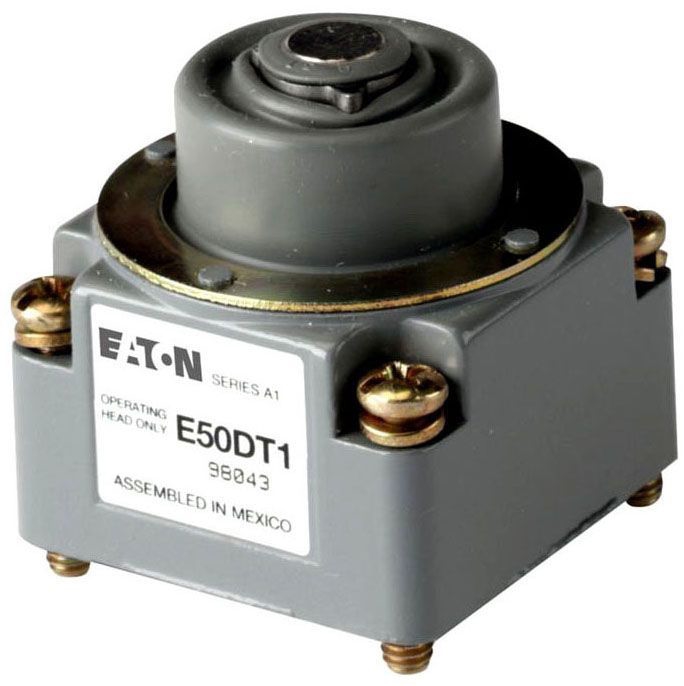

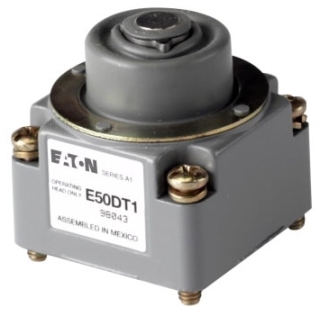

| Long Description | LIMIT SWITCH OPERATING HEAD, TOP PUSHBUTTON TYPE; E50/E50 6P/10316 SERIES LIMIT SWITCH USED ON; SPRING RETURN OPERATION TYPE; UL, CSA, CE APPROVAL; 14 TO 250 DEG F (WITHOUT CABLE), 14 TO 221 DEG F (WITH CABLE) OPERATING TEMPERATURE; 4 LB OPERATING FORCE |
| MSDS Form Number | * |
| Material | Die cast zinc |
| Model | E50 |
| Noun | * |
| Operating Force | 4 Lb |
| Operating Temperature | 14 to 250 Deg F (Without Cable), 14 to 221 Deg F (With Cable) |
| Operating Temperature Maximum | 14 F |
| Operating Temperature Minimum | 14 F |
| Operating Travel | 0.04 Inch |
| Operation Type | Spring Return |
| Product Description | L-SW OPRTG HEAD |
| Product Keywords | WEBREADY |
| Product Name | Switch part or accessory |
| ProductLine | C-H |
| Reset Travel | 0.02 Inch |
| Standard | CSA Certified,UL Recognized,UL Listed,RoHS Compliant,CE Marked |
| Total Travel | 0.28 Inch |
| Type | Heavy duty plug-in limit switch;Top Pushbutton |
| UNSPSC | 39122221 |
| UPC | 78211329059 |
| Used On | E50/E50 6P/10316 Series Limit Switch |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Width | 1.54 in |
