C-H E50SA6P12

L-SW BODY

Page Loading...
EATON CONTROLS (CUTLER-HAMMER)
L-SW BODY

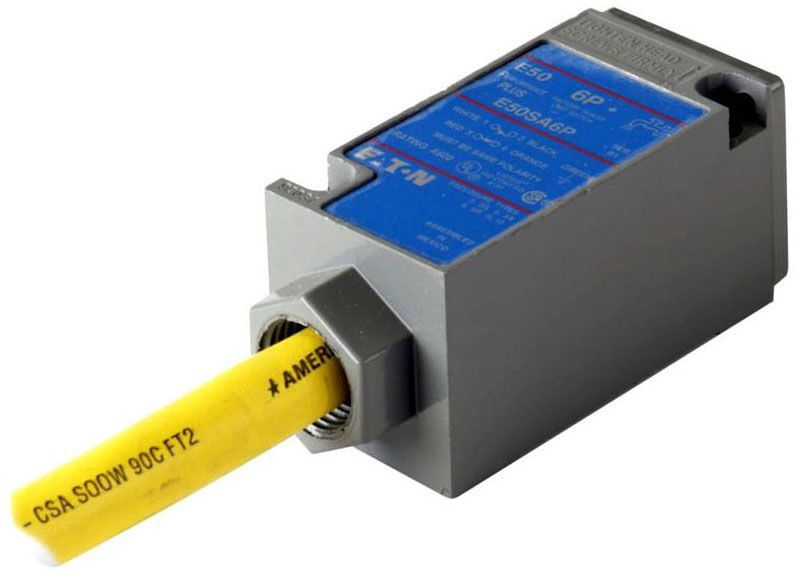

Mouse over image to zoom, click to enlarge

Description:
L-SW BODY

UPC:  78211313561

Part Number: E50SA6P12

UNSPSC: 39122213

Status:  UNKNOWN

Your Price:  $432.84 / EA


Quantity  EA

Specifications

Manufacturer Name EATON CONTROLS (CUTLER-HAMMER)
MfgPartNo E50SA6P12
Actuator Head Type No
Additional Information Cable Length 12 Foot
Application Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: Forming
Approval UL, CSA, CE
Base Price 0.0000
Brand Name Eaton
Catalog Number E50SA6P12
Commerce Sector Construction Materials
Commodity Code 46180
Commodity Description Limit Switch Bodies
Connection 12 ft (3.7 m) cable
Connection Type 1/2 Inch Threaded, 8 Foot Pre-Wired 16 AWG Cable
Contact Configuration 1 NO-1 NC;1-Pole, 1NO-1NC
Contact Rating 10A at 240Vac, 1A at 250Vdc;600 Volt AC 10 Amp, 250 Volt DC 1 Amp
CountryOfOrigin MX
DDCATEGORY 2188
Dimensions 1.5400 IN X 1.5800 IN X 3.5800 IN
Directory CIS
Enclosure NEMA 1/3/3S/4/4X/6/6P/13, IP67
Families 2188
Family Description Limit Switch Bodies
Image Location * Image
Industry ELX
InvoiceDescription E50 HEAVY DUTY LIMIT SWITCH;L-SW BODY
Item Number 13561
Long Description LIMIT SWITCH BODY, HEAVY DUTY FACTORY SEALED TYPE; EPOXY FILLED DIE-CAST ZINC MATERIAL; E50 6P+ SERIES LIMIT SWITCH USED ON; 1-POLE, 1NO-1NC CONTACT CONFIGURATION; 1/2 INCH THREADED, 8 FOOT PRE-WIRED 16 AWG CABLE CONNECTION TYPE
MSDS Form Number *
Material Epoxy Filled Die-Cast Zinc
Model E50
Noun *
Operating Temperature -29 FAH;-40 to 250 Deg F
Product Description L-SW BODY
Product Keywords WEBREADY
Product Name Limit switch
ProductLine C-H
Standard CSA Certified,UL Recognized,CE Marked
Type Heavy duty plug-in limit switch;Heavy Duty Factory Sealed
UNSPSC 39122213
UPC 78211313561
Used On E50 6P+ Series Limit Switch
Vendor Name EATON DISTRIBUTION EQUIPMENT/CONTROLS
Vendor Number 782113
Vendor Short Name CH3

Resources

CatalogNumber E50SA6P12
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
