| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E50SB6P |
| Actuator Head Type | NO |
| Additional Information | APPLICABLE STANDARD IEC 947-5-1 |
| Application | Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL, CSA, TUV |
| Base Price | 0.0000 |
| Catalog Number | E50SB6P |
| Commerce Sector | Construction Materials |
| Commodity Code | 46180 |
| Commodity Description | Limit Switch Bodies |
| Connection Type | 1/2 INCH NPT, 8 FT PRE WIRED 16 AWG CABLE |
| Contact Configuration | DP, 2NO-2NC |
| Contact Rating | 600 VAC 10 AMPERE, 250 VDC 1 AMPERE |
| CountryOfOrigin | MX |
| DDCATEGORY | 2188 |
| Depth | 1.54 in |
| Dimensions | 3.6300 IN X 1.5400 IN X 2.4600 IN |
| Directory | CIS |
| Enclosure | NEMA 1/3/3S/4/4X/6/6P/13, IP67 |
| Families | 2188 |
| Family Description | Limit Switch Bodies |
| Height | 2.46 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LIMIT SWITCH BODY,6P+,2NO/2NC,8' CABLE;L-SW BODY |
| Item Number | 13705 |

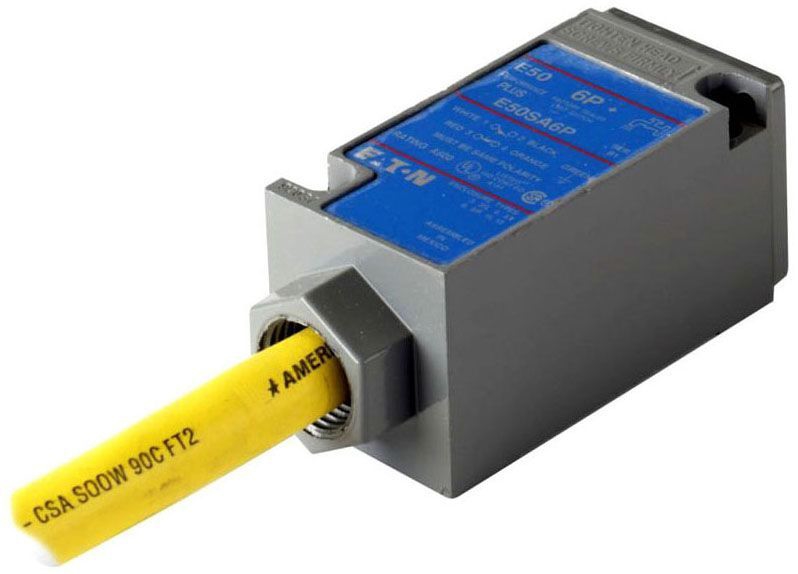

| Long Description | LIMIT SWITCH BODY, HEAVY DUTY FACTORY SEALED TYPE; EPOXY FILLED DIE CAST ZINC MATERIAL; E50 6P+ SERIES LIMIT SWITCH USED ON; DP, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH NPT, 8 FT PRE WIRED 16 AWG CABLE CONNECTION TYPE |
| MSDS Form Number | * |
| Material | Die cast zinc;EPOXY FILLED DIE CAST ZINC |
| Model | E506P |
| Noun | * |
| Operating Temperature | 14 TO 221 DEG F |
| Operating Temperature Maximum | -31 F |
| Operating Temperature Minimum | -31 F |
| Product Description | L-SW BODY |
| Product Keywords | WEBREADY |
| Product Name | Switch part or accessory |
| ProductLine | C-H |
| Standard | UL Recognized,CSA Certified,UL Listed,RoHS Compliant,CE Marked |
| Type | Heavy duty plug-in limit switch;HEAVY DUTY FACTORY SEALED |
| UNSPSC | 39122221 |
| UPC | 78211313705 |
| Used On | E50 6P+ SERIES LIMIT SWITCH |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Width | 1.54 in |
