| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E50SBL |
| Actuator Head Type | NO |
| Additional Information | APPLICABLE STANDARD IEC 947-5-1; PARALLEL WIRED INDICATING LIGHT |
| Application | Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other |
| Approval | UL, CSA, TUV |
| Base Price | 0.0000 |
| Catalog Number | E50SBL |
| Commerce Sector | Construction Materials |
| Commodity Code | 46180 |
| Commodity Description | Limit Switch Bodies |
| Connection Type | 9 PIN RECEPTACLE |
| Contact Configuration | 2 NO-2 NC;DP, 2NO-2NC |
| Contact Rating | 10A at 12 Vac, 1A at 125 Vdc;120 VAC 10 AMPERE, 125 VDC 1 AMPERE |
| CountryOfOrigin | MX |
| DDCATEGORY | 2188 |
| Dimensions | 3.1400 IN X 1.5400 IN X 1.7300 IN |
| Directory | CIS |
| Enclosure | NEMA 1/3/3S/4/4X/6/6P/13, IP67 |
| Families | 2188 |
| Family Description | Limit Switch Bodies |

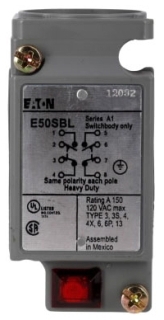

| Image Location | * Image |
| Indicating Light Type | 24 TO 120 VAC/VDC LED |
| Industry | ELX |
| InvoiceDescription | LIMIT SWITCH BODY,2NO/2NC,LED;L-SW BODY |
| Item Number | 77537 |
| Long Description | LIMIT SWITCH BODY, HEAVY DUTY PLUG IN TYPE; DIE CAST ZINC MATERIAL; E50 SERIES MODULAR PLUG IN LIMIT SWITCH USED ON; DP, 2NO-2NC CONTACT CONFIGURATION; 9 PIN RECEPTACLE CONNECTION TYPE; 120 VAC 10 AMPERE, 125 VDC 1 AMPERE CONTACT RATING |
| MSDS Form Number | * |
| Material | DIE CAST ZINC |
| Model | E50 |
| Noun | * |
| Number Of Poles | 2 |
| Operating Temperature | 14 TO 250 DEG F |
| Operating Temperature Maximum | -40 F |
| Operating Temperature Minimum | -40 F |
| Product Description | L-SW BODY |
| Product Keywords | WEBREADY |
| Product Name | Limit switch |
| ProductLine | C-H |
| Standard | CSA Certified,UL Recognized,UL Listed,RoHS Compliant,CE Marked |
| Type | Heavy duty plug-in limit switch;HEAVY DUTY PLUG IN |
| UNSPSC | 39122213 |
| UPC | 78211377537 |
| Used On | E50 SERIES MODULAR PLUG IN LIMIT SWITCH |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
