EATON CONTROLS (CUTLER-HAMMER)

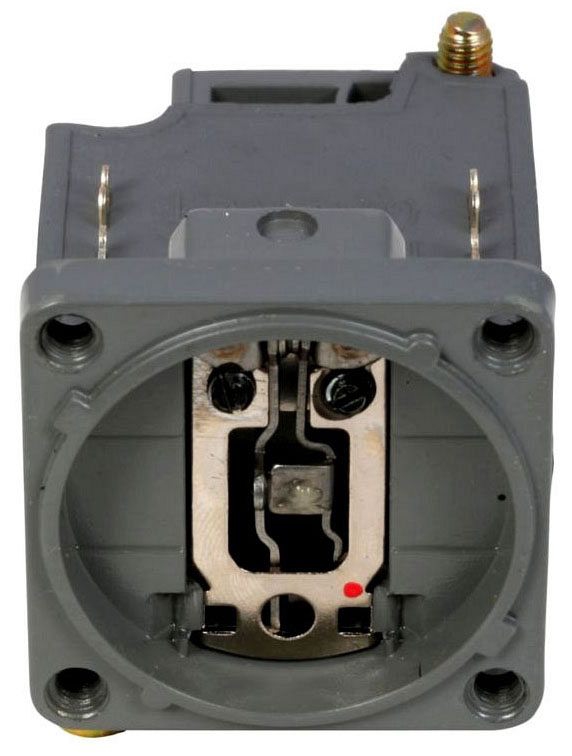

L-SW BODY

Mouse over image to zoom, click to enlarge

Description:
L-SW BODY

UPC:  78211330881

Part Number: E50ST

UNSPSC: 39122213

Status:  UNKNOWN

Log In for Pricing



Specifications

Manufacturer Name EATON CONTROLS (CUTLER-HAMMER)
MfgPartNo E50ST
Actuator Head Type NO
Additional Information APPLICABLE STANDARD IEC 947-5-1
Application Water and Wastewater Systems - Water and Wastewater Systems - OtherStationary Mach Equip In Factory - Machine Tools: CuttingStationary Mach Equip In Factory - Machine Tools: FormingInd Facilities & Factories - Industrial Facilities/Factories - Other
Approval UL, CSA, TUV
Catalog Number E50ST
Commerce Sector Construction Materials
Commodity Code 46180
Commodity Description Limit Switch Bodies
Connection Type 1/2 INCH NPT CONDUIT
Contact Configuration 1 NO-1 NC;DP, 2NO-2NC
Contact Rating 10A at 240Vac, 1A at 125Vdc;600 VAC 10 AMPERE, 250 VDC 1 AMPERE
CountryOfOrigin MX
DDCATEGORY 2188
Dimensions 1.5400 IN X 1.7800 IN X 3.1300 IN
Directory CIS
Enclosure NEMA 1/3/3S/4/4X/6/6P/13, IP67
Families 2188
Family Description Limit Switch Bodies
Image Location * Image
Industry ELX
InvoiceDescription E50 SWITCH BODY;L-SW BODY
Item Number 30881
Long Description LIMIT SWITCH BODY, HEAVY DUTY PLUG IN TYPE; DIE CAST ZINC MATERIAL; E50 SERIES MODULAR PLUG IN LIMIT SWITCH USED ON; DP, 2NO-2NC CONTACT CONFIGURATION; 1/2 INCH NPT CONDUIT CONNECTION TYPE; 600 VAC 10 AMPERE, 250 VDC 1 AMPERE CONTACT RATING
MSDS Form Number *
Material DIE CAST ZINC
Model E50
Noun *
Operating Temperature 14 TO 250 DEG F
Operating Temperature Maximum 14 F
Operating Temperature Minimum 14 F
Product Description L-SW BODY
Product Keywords WEBREADY
Product Name Limit switch
ProductLine C-H
Standard UL Listed,CSA Certified,RoHS Compliant,CE Marked
Type Heavy duty plug-in limit switch;HEAVY DUTY PLUG IN
UNSPSC 39122213
UPC 78211330881
Used On E50 SERIES MODULAR PLUG IN LIMIT SWITCH
Vendor Name EATON DISTRIBUTION EQUIPMENT/CONTROLS
Vendor Number 782113
Vendor Short Name CH3

Resources

CatalogNumber E50ST
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
