| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E51CLP1 |
| Additional Information | Gasket Material Viton |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | E51CLP1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 46230 |
| Commodity Description | Photoelectric Sensors |
| Connection | 5-pin mini connector |
| Connection Type | 1/2 Inch Threaded |
| CountryOfOrigin | MX |
| DDCATEGORY | 2192 |
| Directory | CIS |
| Enclosure | NEMA 3/3S/4/4X/6/6P/12/13, IP67 |
| Families | 2192 |
| Family Description | Photoelectric Sensors |
| Height | 4.89 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PROXIMITY SWITCH;PH-E SEN |
| Item Number | 14693 |
| Length | 1.54 in |

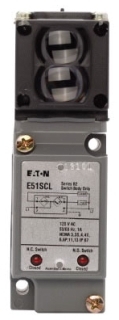

| Long Description | PHOTOELECTRIC SENSOR, REFLEX TYPE; DIE-CAST ZINC MATERIAL; 1.54 INCH WIDTH X 1.82 INCH DEPTH X 4.89 INCH HEIGHT SIZE; 1/2 INCH THREADED CONNECTION TYPE; 4 WIRE(S); UL, CSA APPROVAL; 120 VOLT AC AT 50/60 HERTZ OPERATING VOLTAGE |
| MSDS Form Number | * |
| Material | Die-Cast Zinc |
| Model | E51 |
| Noun | * |
| Number Of Wires | 4 |
| Operating Temperature | -13 to 158F (-25 to 70C);-13 to 158 Deg F |
| Operating Voltage | 120 Volt AC at 50/60 Hertz |
| Output Configuration | NO-NC Complementary |
| Product Description | PH-E SEN |
| Product Keywords | WEBREADY |
| Product Name | Photoelectric sensors |
| ProductLine | C-H |
| Response Time | 20 Millisecond On, 30 Millisecond Off |
| Sensing Beam | Infrared |
| Sensing Distance | 18 Foot |
| Size | 1.54 Inch Width x 1.82 Inch Depth x 4.89 Inch Height |
| Standard | UL Listed,CSA Certified,CE Marked |
| Type | Limit switch photoelectric sensor;Reflex |
| UNSPSC | 39121528 |
| UPC | 78211314693 |
| Vendor Name | EATON DISTRIBUTION EQUIPMENT/CONTROLS |
| Vendor Number | 782113 |
| Vendor Short Name | CH3 |
| Width | 1.82 in |
