| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | E57-18LE12-A1P |
| Additional Information | INCORPORATES TRANSIENT NOISE, POWER ON FALSE PULSE PROTECTION; SENSOR LENGTH 80.3 MM L |
| Application | Stationary Mach Equip In Factory - Other Stationary Machinery and Equipment - In Factory |
| Approval | UL, CSA |
| Barrel Diameter | 18 MM |
| Base Price | 0.0000 |
| Body Material | 303 STAINLESS STEEL |
| Catalog Number | E57-18LE12-A1P |
| Commerce Sector | Construction Materials |
| Commodity Code | 46220 |
| Commodity Description | Inductive Proximity Sensor |
| Connection Type | 3 PIN MICRO AC PIGTAIL |
| Construction | THREADED BARREL |
| CountryOfOrigin | MX |
| DDCATEGORY | 2191 |
| Dimensions | 0.7100 IN X 0.7100 IN X 2.7200 IN |
| Directory | CIS |
| Enclosure | NEMA 4/4X/6/6P/12/13, IP67 |
| Families | 2191 |
| Family Description | Inductive Proximity Sensor |

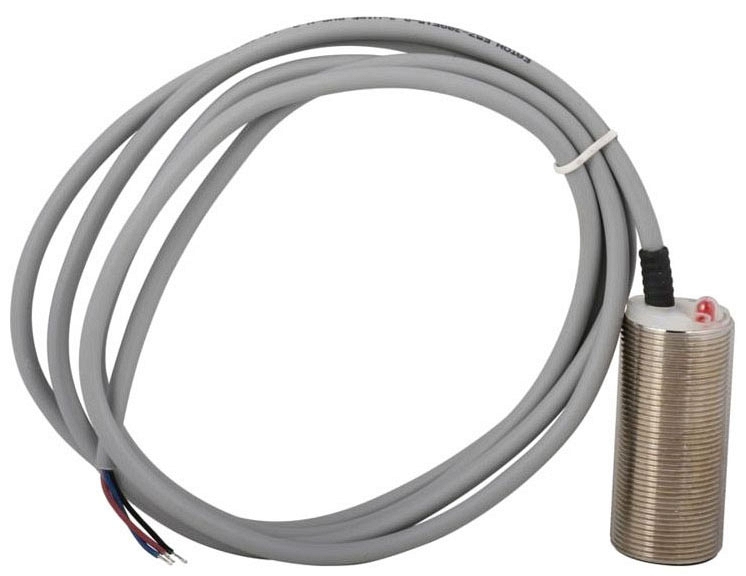

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 18MM EXT RANGE IND PROX 2W AC PIGTAIL;2W PROX SENSOR |
| Item Number | 00920 |
| Load Current | 500 MILLIAMPERE |
| Long Description | INDUCTIVE PROXIMITY SENSOR, 3 PIN MICRO AC PIGTAIL CONNECTION TYPE; 2 WIRE(S); UL, CSA APPROVAL; 20 TO 250 VAC AT 50/60HZ OPERATING VOLTAGE; NEMA 4/4X/6/6P/12/13, IP67 ENCLOSURE; 303 STAINLESS STEEL BODY MATERIAL; THREADED BARREL CONSTRUCTION |
| MSDS Form Number | * |
| Model | E57 |
| Noun | * |
| Number Of Wires | 2 |
| Operating Temperature | -13 TO 158 DEG F |
| Operating Voltage | 20 TO 250 VAC AT 50/60HZ |
| Output Configuration | NC |
| Product Description | 2W PROX SENSOR |
| Product Keywords | WEBREADY |
| Product Name | Proximity switch |
| ProductLine | C-H |
| Sensing Distance | 12 MM |
| Sensing Position | END |
| Shielding Type | SEMI SHIELDED |
| Standard | UL Listed,CSA Certified,CE Marked |
| Switching Frequency | 15 HZ |
| Type | Inductive proximity sensor |
| UNSPSC | 39122230 |
| UPC | 78211400920 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
