| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | EGH3090FFG |
| Additional Information | APPLICABLE STANDARD IEC 157-1; ICS RATING 50 KILOAMPERE AT 220 TO 240 VAC, 35 KILOAMPERE AT 380 TO 415 VAC, 42 KILOAMPERE AT 250 VDC (UL/IEC) |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | EGH3090FFG |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| CountryOfOrigin | DO |
| Current Rating | 90 A;90 AMPERE AT 40 DEG C |
| DDCATEGORY | 1806 |
| Dimensions | 2.9900 IN X 3.0000 IN X 5.5000 IN |
| Directory | CIS |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | EG |
| Frame Type | E125 |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 50 Hz |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating 240VAC | 100 |
| Interrupt Rating 480VAC | 65 |
| Interrupt Rating 600VAC | 35 |
| Interrupting Rating | 100 KILOAMPERE AT 220 TO 240 VAC, 70 KILOAMPERE AT 380 TO 415 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC STAR/347 VAC, 42 KILOAMPERE AT 250 VDC (UL/IEC) |
| InvoiceDescription | E 3P 90A 70kA 415 65kA 480V FXD TM;3P 90A CB |
| Item Number | 87761 |
| Long Description | MOLDED CASE CIRCUIT BREAKER, MOLDED CASE, THERMAL MAGNETIC TYPE; 3 INCH W X 2.99 INCH D X 5.5 INCH H SIZE; 480 MAX. AC VOLTAGE RATING; UL, CSA APPROVAL; 415/480 V AT 50/60 HZ VOLTAGE RATING |
| MSDS Form Number | * |
| Maximum AC Voltage Rating | 480 |
| Maximum AC Voltage Rating UOM | V |
| Model | EGH |
| Noun | * |
| Number Of Poles | 3 |
| Product Description | 3P 90A CB |
| Product Keywords | WEBREADY |

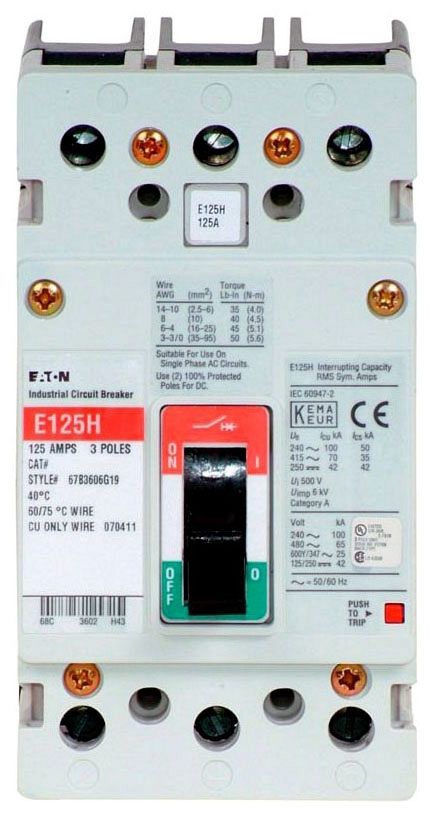

| Product Name | Molded case circuit breakers |
| ProductLine | C-H |
| Size | 3 INCH W X 2.99 INCH D X 5.5 INCH H |
| Standard | UL Listed,CSA Certified,IEC Rated,CE Marked |
| Terminal Type | STANDARD LINE TERMINAL, STANDARD LOAD TERMINAL |
| Tripping Characteristic | T186 |
| Type | Molded case circuit breaker;MOLDED CASE, THERMAL MAGNETIC |
| UNSPSC | 39121616 |
| UPC | 78211487761 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
| Voltage Rating | 600Y/347 Vac;415/480 V AT 50/60 HZ |
