| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | HFD3015LA01 |
| Additional Information | APPLICABLE STANDARD IEC 157-1; INCLUDES LEFT POLE MOUNTED 1NO-1NC CONTACT AUXILIARY SWITCH WITH PIGTAIL LEAD |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Base Price | 0.0000 |
| Catalog Number | HFD3015LA01 |
| Circuit Breaker Frame | F |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| CountryOfOrigin | DO |
| Current Rating | 15 A;15 AMPERE AT 40 DEG C |
| DDCATEGORY | 1806 |
| Dimensions | 3.3800 IN X 4.1300 IN X 6.0000 IN |
| Directory | CIS |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | F |
| Frame Type | F |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 50 Hz |

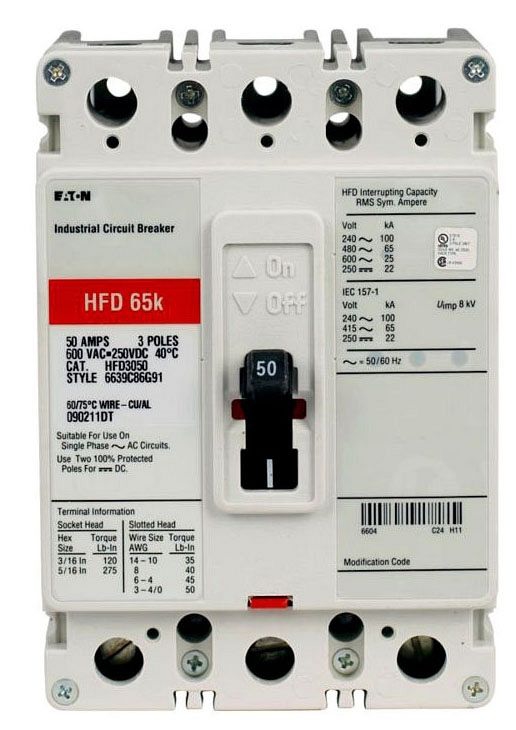

| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating 240VAC | 65 kAIC at 480 Vac100 kAIC at 240 Vac |
| Interrupt Rating 480VAC | 65 |
| Interrupting Rating | 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 22 KILOAMPERE AT 250 VDC (UL); 100 KILOAMPERE AT 220/240 VAC, 65 KILOAMPERE AT 380/415/440 VAC, 25 KILOAMPERE AT 500 VAC, 22 KILOAMPERE AT 250 VDC (IEC) |
| InvoiceDescription | HFD 3P 15A W/AUX SW 1A1B LH TERM L&L;3P 15A CB |
| Item Number | 08806 |
| Long Description | MOLDED CASE CIRCUIT BREAKER, MOLDED CASE, THERMAL MAGNETIC TYPE; 4.125 INCH W X 3.375 INCH D X 6 INCH H SIZE; 600 MAX. AC VOLTAGE RATING; 250 MAX. DC VOLTAGE RATING; 600 VAC AT 50/60 HZ, 250 VDC VOLTAGE RATING |
| MSDS Form Number | * |
| Maximum AC Voltage Rating | 600 |
| Maximum AC Voltage Rating UOM | V |
| Maximum DC Voltage Rating | 250 |
| Maximum DC Voltage Rating UOM | V |
| Model | HFD |
| Noun | * |
| Number Of Poles | 3 |
| Product Description | 3P 15A CB |
| Product Keywords | WEBREADY |
| Product Name | Molded case circuit breakers |
| ProductLine | C-H |
| Size | 4.125 INCH W X 3.375 INCH D X 6 INCH H |
| Standard | UL Listed |
| Terminal Type | STANDARD PRESSURE LINE TERMINAL, STANDARD PRESSURE LOAD TERMINAL |
| Tripping Characteristic | T186 |
| Type | Molded case circuit breaker;MOLDED CASE, THERMAL MAGNETIC |
| UNSPSC | 39121616 |
| UPC | 78667908806 |
| Vendor Name | EATON METERING & DISTRIB |
| Vendor Number | 786679 |
| Vendor Short Name | CHD |
| Voltage Rating | 600 Vac, 250 Vdc;600 VAC AT 50/60 HZ, 250 VDC |
