| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | HFD3025V |
| Additional Information | APPLICABLE STANDARD IEC 60947-2, NEMA, VDE |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approval | CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Eaton;EATON[R] |
| Catalog Number | HFD3025V |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| CountryOfOrigin | DO |
| Current Rating | 25 A;25 AMPERE AT 50 DEG C |
| DDCATEGORY | 1806 |
| Dimensions | 3.3800 IN X 4.1300 IN X 6.0000 IN |
| Directory | CIS |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | F |
| Frame Type | F |
| Frequency Rating | 50/60 Hz |

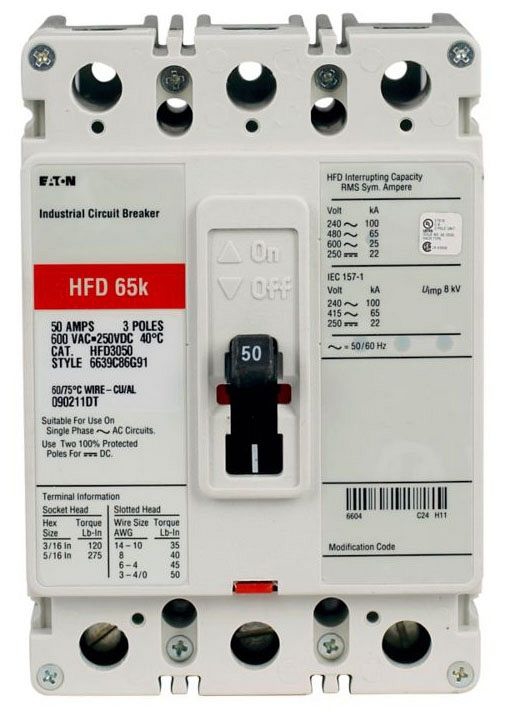

| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 100 kAIC at 240 Vac65 kAIC at 480 Vac |
| Interrupting Rating | 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 22 KILOAMPERE AT 250 VDC (UL 489), 100 KILOAMPERE AT 220/240 VAC, 65 KILOAMPERE AT 380/415/440 VAC, 25 KILOAMPERE AT 500 VAC, 22 KILOAMPERE AT 250 VDC (IEC 157-1) |
| InvoiceDescription | 50 DEGREE HFD 25A;3P 25A CB |
| Item Number | 39628 |
| Long Description | NON INTERCHANGEABLE TRIP CIRCUIT BREAKER, MOLDED CASE, THERMAL MAGNETIC TYPE; 4.13 INCH W X 3.38 INCH D X 6 INCH H SIZE; 600 V MAX. AC VOLTAGE RATING; 250 V MAX. DC VOLTAGE RATING; CSA C22.2 APPROVAL; 600 VAC AT 50/60 HZ, 250 VDC VOLTAGE RATING |
| MSDS Form Number | * |
| Maximum AC Voltage Rating | 600 V |
| Maximum DC Voltage Rating | 250 V |
| Model | HFD |
| Noun | * |
| Number Of Poles | 3 |
| Product Description | 3P 25A CB |
| Product Keywords | WEBREADY |
| Product Name | Molded case circuit breakers |
| ProductLine | C-H |
| Size | 4.13 INCH W X 3.38 INCH D X 6 INCH H |
| Standard | UL Listed |
| Terminal Type | LOAD TERMINAL |
| Trip Type | Fixed thermal, fixed magnetic |
| Type | Molded case circuit breaker;MOLDED CASE, THERMAL MAGNETIC |
| UNSPSC | 39121616 |
| UPC | 78667939628 |
| Vendor Name | EATON METERING & DISTRIB |
| Vendor Number | 786679 |
| Vendor Short Name | CHD |
| Voltage Rating | 600//250 VAC//VDC;600 VAC AT 50/60 HZ, 250 VDC |
