| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | HFD3070VS24 |
| Additional Information | APPLICABLE STANDARD IEC 157-1; CALIBRATION AT 50 DEG C; INCLUDES RIGHT/NEUTRAL POLE MOUNTED 48 TO 127 VAC/48 TO 60 VDC SHUNT TRIP WITH TERMINAL BLOCK |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | HFD3070VS24 |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| CountryOfOrigin | DO |
| Current Rating | 70A;70 AMPERE AT 40 DEG C |
| DDCATEGORY | 1806 |
| Dimensions | 3.3800 IN X 4.1300 IN X 6.0000 IN |
| Directory | CIS |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | F |
| Frame Type | F |
| Frequency Rating | 50/60 Hz |

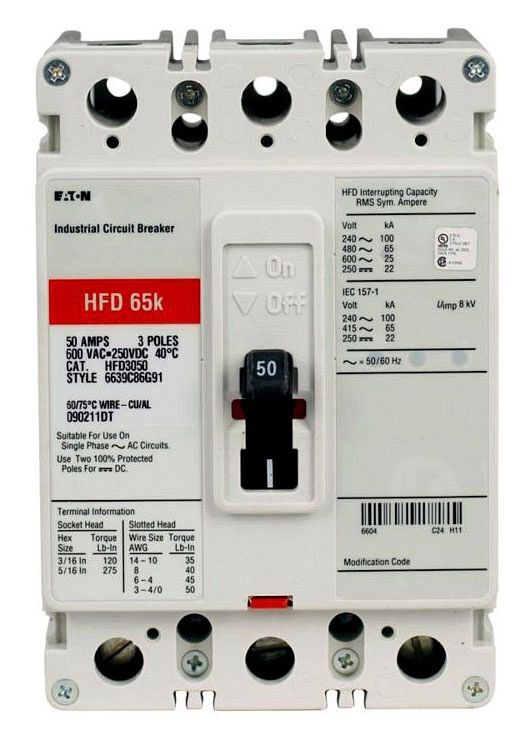

| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 65 kAIC at 480 Vac100 kAIC at 240 Vac |
| Interrupting Rating | 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 22 KILOAMPERE AT 250 VDC (UL); 100 KILOAMPERE AT 220/240 VAC, 65 KILOAMPERE AT 380/415/440 VAC, 25 KILOAMPERE AT 500 VAC, 22 KILOAMPERE AT 250 VDC (IEC) |
| InvoiceDescription | HFD 3P 70A SHUNT TRIP RH TERM BLK 50;3P 70A CB |
| Item Number | 20107 |
| Long Description | MOLDED CASE CIRCUIT BREAKER, MOLDED CASE, THERMAL MAGNETIC TYPE; 4.125 INCH W X 3.375 INCH D X 6 INCH H SIZE; 600 MAX. AC VOLTAGE RATING; 250 MAX. DC VOLTAGE RATING; 600 VAC AT 50/60 HZ, 250 VDC VOLTAGE RATING |
| MSDS Form Number | * |
| Maximum AC Voltage Rating | 600 |
| Maximum AC Voltage Rating UOM | V |
| Maximum DC Voltage Rating | 250 |
| Maximum DC Voltage Rating UOM | V |
| Model | HFD |
| Noun | * |
| Number Of Poles | 3 |
| Product Description | 3P 70A CB |
| Product Keywords | WEBREADY |
| Product Name | Molded case circuit breakers |
| ProductLine | C-H |
| Size | 4.125 INCH W X 3.375 INCH D X 6 INCH H |
| Standard | UL Listed |
| Terminal Type | STANDARD PRESSURE LOAD TERMINAL |
| Trip Type | Fixed thermal, fixed magnetic |
| Type | Molded case circuit breaker;MOLDED CASE, THERMAL MAGNETIC |
| UNSPSC | 39121616 |
| UPC | 78211420107 |
| Vendor Name | EATON CONTROLS/DISTRIBUTION EQUIPMENT |
| Vendor Number | 782114 |
| Vendor Short Name | CH1 |
| Voltage Rating | 600//250 VAC//VDC;600 VAC AT 50/60 HZ, 250 VDC |
