| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | HFD3100 |
| Additional Information | Includes Load Terminal, Applicable Standard NEMA AB1, AS 2184, BS 4752, IEC 157-1, SABS 156, SEV 157-1, VDE 0660 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other |
| Approval | UL 489, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | HFD3100 |
| Commerce Sector | Construction Materials |
| Commodity Code | 32613 |
| Commodity Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| CountryOfOrigin | DO |
| Current Rating | 100 A;100 Amp at 40 Deg C |
| DDCATEGORY | 1806 |
| Dimensions | 3.3800 IN X 4.1300 IN X 6.0000 IN |
| Directory | CIS |
| Families | 1806 |
| Family Description | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
| Frame | F |
| Frame Type | FD |
| Frequency Rating | 50/60 Hz |

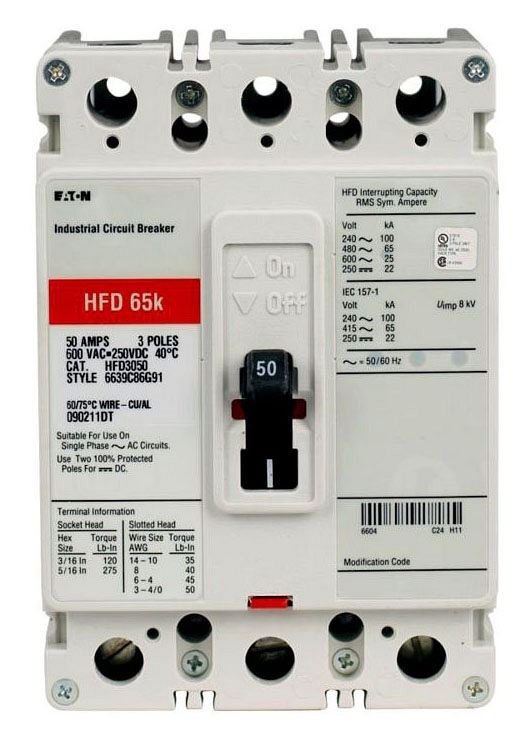

| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 100 kAIC at 240 Vac65 kAIC at 480 Vac |
| Interrupting Rating | 100 Kiloamp at 240 Volt AC at 50/60 Hertz, 65 Kiloamp at 480 Volt AC at 50/60 Hertz, 25 Kiloamp at 600 Volt DC, 22 Kiloamp at 250 Volt DC |
| InvoiceDescription | Eaton Series C complete MCCB;100A 3P CKT BRKR |
| Item Number | 17589 |
| Long Description | MOLDED CASE THERMAL MAGNETIC CIRCUIT BREAKER, MOLDED CASE, THERMAL MAGNETIC TYPE; 4.13 INCH WIDTH X 3.38 INCH DEPTH X 6 INCH HEIGHT SIZE; 600 VOLT MAX. AC VOLTAGE RATING; 250 VOLT MAX. DC VOLTAGE RATING; UL 489, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Maximum AC Voltage Rating | 600 Volt |
| Maximum DC Voltage Rating | 250 Volt |
| Model | C, HFD |
| Noun | * |
| Number Of Poles | 3 |
| Product Description | 100A 3P CKT BRKR |
| Product Keywords | WEBREADY |
| Product Name | Molded case circuit breakers |
| ProductLine | C-H |
| Size | 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height |
| Standard | UL Listed |
| Terminal Type | Standard Pressure Load |
| Trip Type | Fixed thermal, fixed magnetic |
| Type | Molded case circuit breaker;Molded Case, Thermal Magnetic |
| UNSPSC | 39121616 |
| UPC | 78667917589 |
| Vendor Name | EATON METERING & DISTRIB |
| Vendor Number | 786679 |
| Vendor Short Name | CHD |
| Voltage Rating | 600//250 VAC//VDC;600 Volt AC at 50/60 Hertz, 250 Volt DC |
