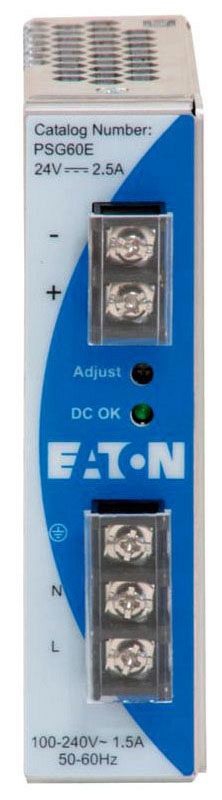

| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | PSG60E |
| Additional Information | RoHS Compliant; Current Rating 30 Amp (Inrush), 3.75 Amp (Surge); Connector Size 22 to 14 AWG |
| Application | Commercial / Institutional Buildings / Structures - Power Distribution and Controls;Industrial Control |
| Approval | UL 508, UL (Canada and US), CSA C22.2, CSA (Canada and US), CE |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | PSG60E |
| Commerce Sector | Construction Materials |
| Commodity Code | 39610 |
| Commodity Description | Ac Power Supplies |
| Connection Type | Screw Terminal |
| CountryOfOrigin | TH |
| DDCATEGORY | 2089 |
| Dimensions | 4.7600 IN X 1.2600 IN X 4.7200 IN |
| Directory | CIS |
| Efficiency | 85 Percent |
| Enclosure | Class I Div 2, Group A/B/C/D |
| Families | 2089 |
| Family Description | Ac Power Supplies |
| Frequency Rating | 47-63 Hz |
| Image Location | * Image |
| Industry | ELX |
| Input Current | 1.1 Amp |
| Input Frequency | 47 to 63 Hertz |
| Input Voltage Range | 85 to 264 Volt AC, 120 to 375 Volt DC |
| InvoiceDescription | Power Supply-1ph 90-264vac, 24vdc@2.5A;1PH 240VAC PWR-SPLY |
| Item Number | 21542 |
| Long Description | SWITCH MODE POWER SUPPLY, ADJUSTABLE OUTPUT TYPE; ALUMINUM MATERIAL; 121 MILLIMETER LENGTH X 32 MILLIMETER WIDTH X 120.5 MILLIMETER HEIGHT SIZE; SCREW TERMINAL CONNECTION TYPE; 1 PHASE(S) |
| MSDS Form Number | * |
| Material | Aluminum |
| Model | PSG |
| Mounting | DIN Rail |
| Nominal Input Voltage | 100 to 240 Volt AC |
| Noun | * |
| Number Of Phases | 1 |
| Operating Temperature | -20 to 75 Deg C |
| Output Current | 2.5 Amp |
| Output Power | 60 Watt |
| Output Voltage | 24 Volt DC |
| Phase | 1 |
| Product Description | 1PH 240VAC PWR-SPLY |
| Product Keywords | WEBREADY |
| Product Name | Power supply units |
| ProductLine | C-H |
| Size | 121 Millimeter Length x 32 Millimeter Width x 120.5 Millimeter Height |
| Special Features | Varistor transient surge voltage, surge voltage protection against internal surge, safety class 1 with ground connection, finger-safe cover |
| Standard | cULus/UL 60950-1,CSA Certified,EN Listed,IEC Rated,UL 508,cUL Certified,CE Marked,German Safety,RoHS Compliant |
| Type | General purpose power supply;Adjustable Output |
| UNSPSC | 39121004 |
| UPC | 78668521542 |
| Vendor Name | EATON NUMA-LOGIC CTRLS/DIST |
| Vendor Number | 786685 |
| Vendor Short Name | CHL |
| Voltage Rating | 85 to 264@AC/100 to 375@DC V |
| WEIGHT | 2.25 Pound |
| Wattage | 60 W |
