| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |

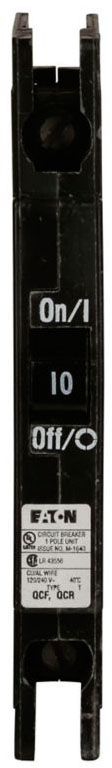

| MfgPartNo | QCR1010 |
| Additional Information | Application Industrial |
| Amperage Rating | 10 A |
| Application | OtherGeneration - Renewable Energy - Alternative EnergyGeneration - Conventional Energy - Conventional EnergyDatacenters - IT Space: CI and Hyper ConvergedMarine Vessels and Equipment - Marine Vessels and Equipment - Other |
| Approval | UL 489, CSA |
| Base Price | 0.0000 |
| Brand Name | Eaton;Quicklag[R] |
| Catalog Number | QCR1010 |
| Commerce Sector | Construction Materials |
| Commodity Code | 32331 |
| Commodity Description | 1 Pole Din Rail Mount Circuit Breakers |
| Connection | Cable-in/cable-out |
| CountryOfOrigin | DO |
| Current Rating | 10 Amp at 40 Deg C |
| DDCATEGORY | 1779 |
| Dimensions | 4.6000 IN X 3.1000 IN X 1.2000 IN |
| Directory | CIS |
| Families | 1779 |
| Family Description | 1 Pole Din Rail Mount Circuit Breakers |
| Image Location | * Image |
| Industry | ELX |
| Interrupt Rating | 10 kAIC |
| Interrupting Rating | 10 Kiloamp at 120/240 Volt AC, 3000 Amp at 24 to 48 Volt DC, 2000 Amp at 62.5 Volt DC |
| InvoiceDescription | QCR BKR 1P 10A 120/240VAC;QCR BKR 1P 10A 120/24 |
| Item Number | 05290 |
| Long Description | DIN RAIL MOUNT CIRCUIT BREAKER, THERMAL MAGNETIC, BRANCH TYPE; 14 TO 4 AWG (ALUMINUM/COPPER) WIRE SIZE; UL 489, CSA APPROVAL; 120/240 VOLT AC VOLTAGE RATING; 35 MM DIN RAIL, CABLE-IN/OUT MOUNTING |
| MSDS Form Number | * |
| Model | QCR |
| Mounting | 35 MM DIN Rail, Cable-In/Out |
| Noun | * |
| Number Of Poles | 1 |
| Product Description | QCR BKR 1P 10A 120/24 |
| Product Keywords | WEBREADY |
| Product Name | Miniature circuit breakers |
| ProductLine | C-H |
| Standard | UL Listed,CSA Certified,HACR Rated |
| Terminal Type | Box |
| Trip Type | Thermal-magnetic |
| Type | Thermal magnetic circuit breakers;Thermal Magnetic, Branch |
| UNSPSC | 39121603 |
| UPC | 78667905290 |
| Vendor Name | EATON METERING & DISTRIB |
| Vendor Number | 786679 |
| Vendor Short Name | CHD |
| Voltage Rating | 120/240 V;120/240 Volt AC |
| Wire Size | 14 to 4 AWG (Aluminum/Copper) |
