| Manufacturer Name | EATON CONTROLS (CUTLER-HAMMER) |
| MfgPartNo | TRL07 |
| Additional Information | Overall Dimension 0.69 Inch W x 2.56 Inch D x 3.43 Inch H; Operating Temperature -25 to 55 Deg C |
| Application | Elec Assemblies, Panels & EOEM - Control Panels for Machines |
| Approval | UL, UL (Canada and US), CE |
| Base Price | 0.0000 |
| Brand Name | Eaton |
| Catalog Number | TRL07 |
| Coil Voltage | 24 to 240 VAC/VDC |
| Commerce Sector | Construction Materials |
| Commodity Code | 42150 |
| Commodity Description | Timing Relays & Accessories |
| Contact Configuration | SPDT |
| Contact Voltage Rating | 250 VAC |
| CountryOfOrigin | AT |
| DDCATEGORY | 2147 |
| Dimensions | 2.5600 IN X 0.6900 IN X 3.4300 IN |
| Directory | CIS |
| Families | 2147 |
| Family Description | Timing Relays & Accessories |
| Frequency Rating | 50-60 Hz |

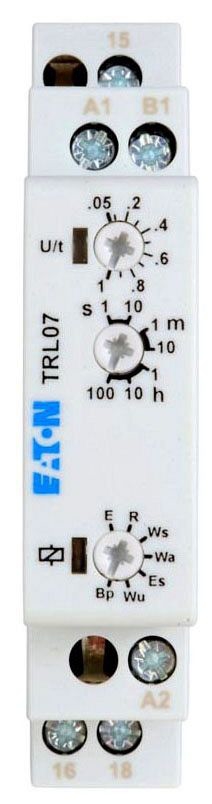

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 7-function universal TR series relay;24-240V SPDT TMG RELAY |
| Item Number | 31358 |
| Long Description | TIMING RELAY, AC/DC OPERATED TYPE; SPDT CONTACT CONFIGURATION; UL, UL (CANADA AND US), CE APPROVAL; DIN RAIL MOUNTING; 24 TO 240 VAC/VDC COIL VOLTAGE; 0.05 SEC TO 100 HR TIMING RANGE; ON/OFF DELAY TIMING MODE; 250 VAC CONTACT VOLTAGE RATING |
| MSDS Form Number | * |
| Model | TR |
| Mounting | Compact DIN rail;DIN Rail |
| Noun | * |
| Product Description | 24-240V SPDT TMG RELAY |
| Product Keywords | WEBREADY |
| Product Name | Time relay |
| ProductLine | C-H |
| Standard | cULus Listed,CSA Certified,CE Marked,TUV |
| Timing Adjustment Operator Type | Selector Switch |
| Timing Mode | On/Off Delay |
| Timing Range | 0.05 Sec to 100 Hr |
| Type | Timing relay;AC/DC Operated |
| UNSPSC | 39122329 |
| UPC | 78668531358 |
| Vendor Name | EATON NUMA-LOGIC CTRLS/DIST |
| Vendor Number | 786685 |
| Vendor Short Name | CHL |
