CCHC LB35 CGN

1-IN AL LB CONDBDY

Page Loading...
MIDWEST ELEC MFG CO

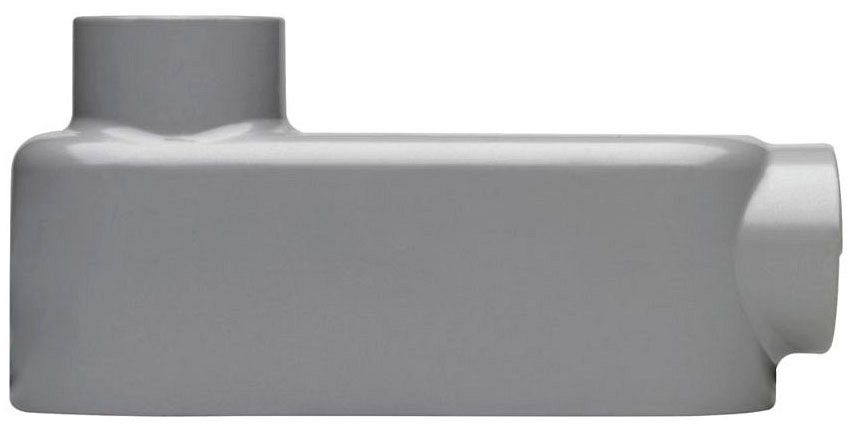

1-IN AL LB CONDBDY

Mouse over image to zoom, click to enlarge

Description:
1-IN AL LB CONDBDY

UPC:  78456474371

Part Number: LB35 CGN

UNSPSC: 39131708

Status:  UNKNOWN

Retail Price:  $26.16 / EA
Your Price:  $17.79 / EA


Quantity  EA

Specifications

Manufacturer Name MIDWEST ELEC MFG CO
MfgPartNo LB35 CGN
Access Opening Back
Additional Information Includes Cover, Gasket and Screw
Application Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Approval UL, CUL
Base Price 0.0000
Brand Name Eaton;SnapPack[TM]
Catalog Number LB35 CGN
Color Gray
Commerce Sector Construction Materials
Commodity Code 25210
Commodity Description Aluminum Conduit Bodies & Covers
Configuration LB
Connection Threaded / Set Screw
CountryOfOrigin MUL
Cover Type Natural Aluminum, Screw
DDCATEGORY 552
Dimensions 5.7900 IN X 1.7400 IN X 2.7400 IN
Directory CIS
Enclosure Condulet
Families 552
Family Description Aluminum Conduit Bodies & Covers
Finish Epoxy Powder Painted
Form Series 5
Height 2.74 in
Hub Location 90 Degree
Hub Size 1 in;1 Inch
Image Location * Image
Industry ELX
Installation Set Screw, Threaded
InvoiceDescription 1 RGD LB COND BODY CVR AND GSKT AL;1-IN AL LB CONDBDY
Item Number 74371
Length 5.79 in
Long Description CONDUIT OUTLET BODY AND COVER, EPOXY POWDER PAINTED DIE-CAST COPPER-FREE ALUMINUM (BODY), NATURAL NEOPRENE (GASKET), STAINLESS STEEL (SCREW) MATERIAL; 5.79 INCH LENGTH X 1.74 INCH WIDTH X 2.74 INCH HEIGHT SIZE; IMC/RIGID CONDUIT USED ON; 1 INCH HUB SIZE
MSDS Form Number *
Material Die-Cast Copper-Free Aluminum;Epoxy Powder Painted Die-Cast Copper-Free Aluminum (Body), Natural Neoprene (Gasket), Stainless Steel (Screw)
Model 5
Mounting Conduit
Noun *
Number Of Hubs 2
Product Description 1-IN AL LB CONDBDY
Product Keywords WEBREADY
Product Name Electrical conduit fitting body
ProductLine CCHC
Size 5.79 Inch Length x 1.74 Inch Width x 2.74 Inch Height
Special Features With Cover and Neoprene Gasket, Corrosion Resistant
Standard UL, CUL
Sub Brand Crouse-Hinds series
Type Conduit outlet body
UNSPSC 39131708
UPC 78456474371
Used On IMC/Rigid Conduit
Vendor Name EATON CROUSE-HINDS COMMERCIAL
Vendor Number 784564
Vendor Short Name CCHC
Width 1.74 in

Resources

CatalogNumber LB35 CGN
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
