| Manufacturer Name | MYERS ELEC PRODUCTS |
| MfgPartNo | STAG 7 |
| Additional Information | Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2, Class I Zone 1 AEx e II, Class I Zone 1 Ex e II; Copper Wire Size 2 AWG (CSA), 6 AWG (UL); Application Hazardous Location; Applicable Standard NEC/CEC, IEC |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Approval | UL 514B, CUL, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Myers[TM], Scru-Tite[R] |
| Catalog Number | STAG 7 |
| Commerce Sector | Construction Materials |
| Commodity Code | 22200 |
| Commodity Description | Rigid Aluminum Conduit Fittings |
| Connection | THREADED |
| Constructional Feature | NEMA 2/3/3R/4/4X/12, IP66, Vibrationproof, Chemical Resistance, Water/Dust Tight |
| CountryOfOrigin | CN |
| DDCATEGORY | 122 |
| Dimensions | 3.7200 IN X 3.0500 IN X 3.7200 IN |
| Directory | CIS |
| Enclosure | NEMA 2/3/3R/4/4X/12 |
| Families | 122 |
| Family Description | Rigid Aluminum Conduit Fittings |
| Finish | Natural |
| Ground Type | Locknut Grounding Screw |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CH MYERS 2 1/2 ALUM GROUND HUB;2-1/2 ALUM INS GRD HUB |
| Item Number | 10111 |

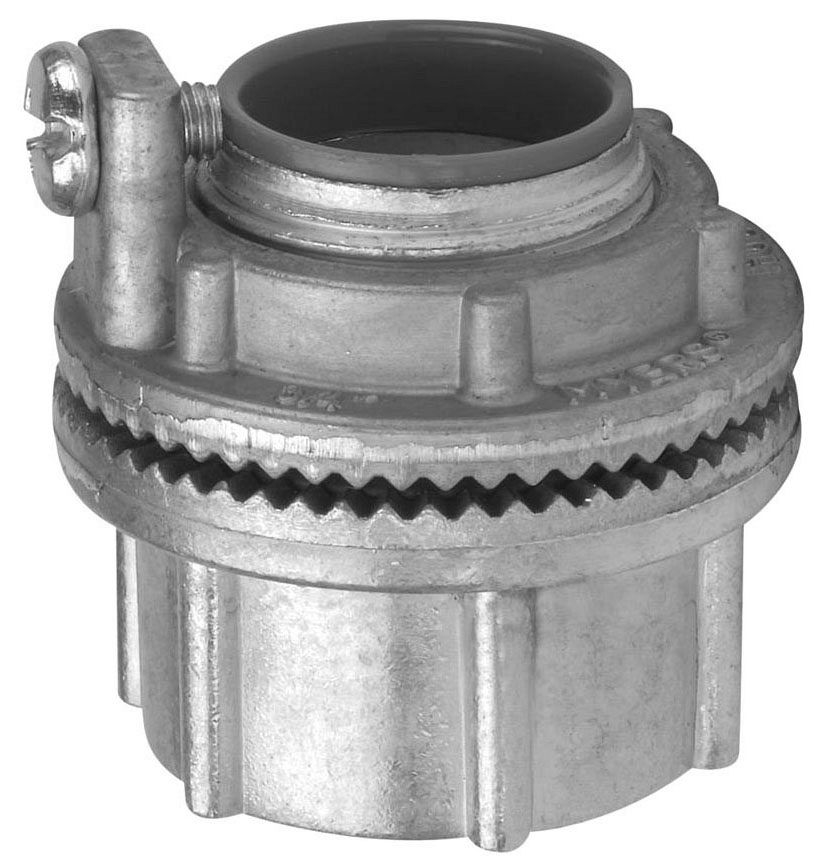

| Long Description | CONDUIT GROUND HUB, MALE THREADED, TAPERED FEMALE THREADED TYPE; NATURAL ALUMINUM (BODY/NUT), STEEL/STAINLESS STEEL (GROUND SCREW) MATERIAL; 3.05 INCH DIAMETER X 3.72 INCH HEIGHT SIZE; IMC/RIGID CONDUIT USED ON; UL 514B, CUL, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | 360 Aluminum;Natural Aluminum (Body/Nut), Steel/Stainless Steel (Ground Screw) |
| Model | STAG |
| Noun | * |
| Product Description | 2-1/2 ALUM INS GRD HUB |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | CCHM |
| Size | 2-1/2 In;3.05 Inch Diameter x 3.72 Inch Height |
| Special Features | Vibration Proof, Ground Wire Size 6 AWG (CSA), 2 AWG (UL), Weight 90 Lb per 100 |
| Standard | UL 514B, CUL, CSA C22.2 |
| Throat Type | Insulated |
| Trade Size | 2-1/2 Inch |
| Type | Ground hub;Male Threaded, Tapered Female Threaded |
| UNSPSC | 39121311 |
| UPC | 78473110111 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | EATON CROUSE-HINDS MYERS HUBS |
| Vendor Number | 784731 |
| Vendor Short Name | CCHM |
