| Manufacturer Name | THEPITT |
| MfgPartNo | TP246 |
| Additional Information | Applicable Standard Federal Specification W-J-800E, NEMA OS-1 |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Approval | UL 514A/514B/514C |
| Base Price | 0.0000 |
| Capacity | 18 Cu Inch |
| Catalog Number | TP246 |
| Clamp Type | Armored/Metal Clad Cable |
| Color | Natural |
| Commerce Sector | Construction Materials |
| Commodity Code | 27100 |
| Commodity Description | Steel Outlet Boxes |
| Construction | Welded |
| CountryOfOrigin | US |
| Cubic Capacity | 18 cubic in |
| DDCATEGORY | 139 |
| Depth | 3-1/2 Inch |
| Dimensions | 2.0000 IN X 3.5000 IN X 3.0000 IN |
| Directory | CIS |
| Families | 139 |
| Family Description | Steel Outlet Boxes |
| Height | 3 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3 1/2 DP MCI CAB SW BX S SET 7/8 BKT;3-1/2D SW BX W/FLAT BRKT |
| Item Number | 10246 |
| Knockout Location | (1) Bottom, (4) Side, (2) End, (4) Cable End |
| Knockout Size | (1) 1/2 Inch Bottom, (4) 1/2 Inch Side, (4) Cable End, (2) 1/2 Inch End |
| Knockouts | (1) 1/2 in_(1) 1/2 in |

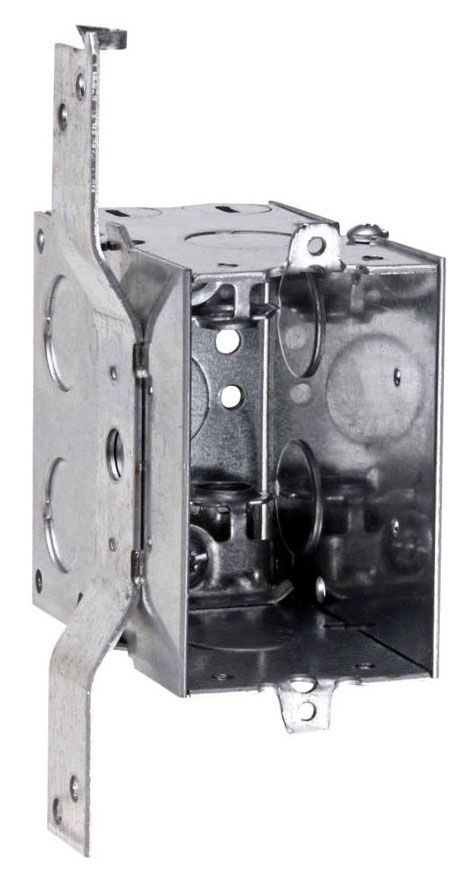

| Long Description | STEEL SWITCH BOX, GANGABLE TYPE; STEEL MATERIAL; 2 INCH; 3 INCH; 3-1/2 INCH; 1 GANG(S); UL 514A/514B/514C APPROVAL; 7/8 INCH SETBACK S BRACKET MOUNTING; 25 STANDARD PACKAGE; 18 CU INCH CAPACITY |
| MSDS Form Number | * |
| Material | Steel |
| Mounting | 7/8 In Setback S Bracket;7/8 Inch Setback S Bracket |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Knockouts | 11 |
| Product Description | 3-1/2D SW BX W/FLAT BRKT |
| Product Keywords | WEBREADY |
| Product Name | Switch boxes |
| ProductLine | CCHO |
| Size | 2 In Width X 3-1/2 In Depth X 3 In Height |
| Special Features | Weight 88 Lb per 100 |
| Standard | UL |
| Standard Package | 25 |
| Type | Switch box;Gangable |
| UNSPSC | 39121306 |
| UPC | 78618910246 |
| Vendor Name | EATON CROUSE-HINDS OUTLET BOXES |
| Vendor Number | 786189 |
| Vendor Short Name | CCHO |
| Width | 2 Inch |
