THEPITT

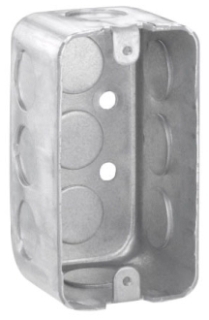

2-1/8D UTILITY BOX

Mouse over image to zoom, click to enlarge

Description:
2-1/8D UTILITY BOX

UPC:  78618910604

Part Number: TP604

UNSPSC: 39121303

Status:  UNKNOWN

Log In for Pricing



Specifications

Manufacturer Name THEPITT
MfgPartNo TP604
Additional Information Size 4 Inch Length x 4 Inch Width; Applicable Standard NEC/CEC
Application Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Approval UL
Capacity 14.5 Cubic Inch
Catalog Number TP604
Color Unpainted
Commerce Sector Construction Materials
Commodity Code 27100
Commodity Description Steel Outlet Boxes
Construction Drawn
CountryOfOrigin US
Cubic Capacity 14.5 in3
DDCATEGORY 139
Depth 2-1/8 Inch
Depth Maximum 2-1/8 in
Depth Minimum 2-1/8 in
Dimensions 4.0000 IN X 2.1300 IN X 2.1300 IN
Directory CIS
Families 139
Family Description Steel Outlet Boxes
Height 2.13 Inch
Image Location * Image
Industry ELX
InvoiceDescription UTILITY BOX 2 1/8 D 1/2 KO 14.5 CU IN;2-1/8D UTILITY BOX
Item Number 10604
Knockout Location Bottom/Side
Knockout Size 1/2 Inch
Knockouts True
Long Description STEEL UTILITY BOX, STEEL MATERIAL; 2.13 INCH; 2.13 INCH; 2-1/8 INCH; UL APPROVAL; 14.5 CUBIC INCH CAPACITY; 1/2 INCH KNOCKOUT SIZE; 11 KNOCKOUT(S); BOTTOM/SIDE KNOCKOUT LOCATION; SIZE 4 INCH LENGTH X 4 INCH WIDTH; APPLICABLE STANDARD NEC/CEC
MSDS Form Number *
Material Steel
Noun *
Number Of Knockouts 11
Product Description 2-1/8D UTILITY BOX
Product Keywords WEBREADY
Product Name Electrical boxes
ProductLine CCHO
Special Features Weight 56 per 100
Standard UL
Type Utility box
UNSPSC 39121303
UPC 78618910604
Vendor Name EATON CROUSE-HINDS OUTLET BOXES
Vendor Number 786189
Vendor Short Name CCHO
Width 2-1/8 in;2.13 Inch

Resources

CatalogNumber TP604
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
