| Manufacturer Name | CROUSE-HINDS ECM & LTG |
| MfgPartNo | APJ6485 |
| Additional Information | Overall Dimension 8.5 Inch Length x 3.75 Inch Width x 3.75 Inch Depth; Enclosure Rating NEMA 4; Includes Cable Grip, Neoprene Bushing, Fastening Ring |
| Amperage Rating | 100 A |
| Application | Ind Facilities & Factories - Facility: Power Distribution and Control |
| Approval | UL 514/1010/1203/1682/1686, CSA C22.2, CE |
| Base Price | 0.0000 |
| Brand Name | Eaton;Arktite[R] |
| Catalog Number | APJ6485 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Constructional Feature | Corrosion Resistant, Dirt Tight, Dust Tight, Water Tight, Moisture Resistant, Weatherproof |
| Cord Type | 0.875 To 1.700 In |
| CountryOfOrigin | MUL |
| Current Rating | 60 Amp |
| DDCATEGORY | 576 |
| Dimensions | 8.5000 IN X 3.7500 IN X 3.7500 IN |
| Directory | CIS |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grounding Style | 2, Shell, Extra Pole |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 60A 3W4P ARKTE PLG .50 TO 1.45 1 1/4;3W-4P PLUG |
| Item Number | 05020 |
| Long Description | MATING PLUG, CIRCUIT BREAKING, COMPRESSOR, CONVEYOR, MOTOR GENERATOR SET, POLARIZED, WELDER TYPE; NATURAL COPPER-FREE ALUMINUM MATERIAL; 0.75 INCH MIN. CABLE OUTER DIAMETER; 1.45 INCH MAX. CABLE OUTER DIAMETER; 3 WIRE(S) |
| MSDS Form Number | * |
| Material | Copper-Free Aluminum;Natural Copper-Free Aluminum |
| Maximum Cable Outer Diameter | 1.45 Inch |
| Minimum Cable Outer Diameter | 0.75 Inch |
| Model | APJ |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 3 |

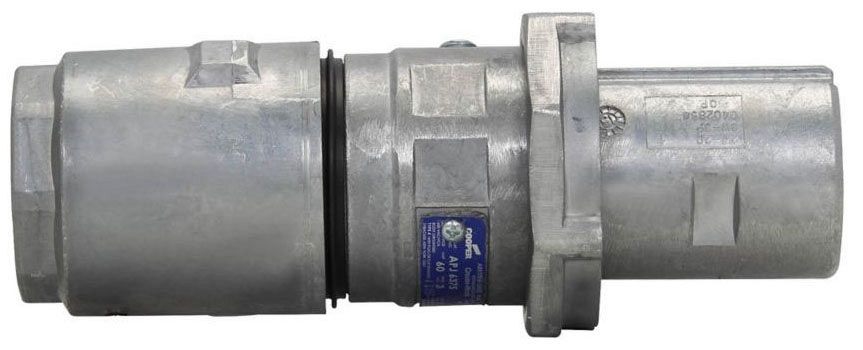

| Product Description | 3W-4P PLUG |
| Product Keywords | WEBREADY |
| Product Name | Electrical plugs |
| ProductLine | CRS-H |
| Size | 4-1/8 In Diameter X 10-1/8 In Length |
| Special Features | Watertight, Grounding Style 1, NEMA 4 Enclosure |
| Standard | UL 514, UL 1010, UL 1682, CSA C22.2 |
| Sub Brand | Crouse-Hinds series |
| Type | Plug;Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder |
| UNSPSC | 39121402 |
| UPC | 78227405020 |
| Vendor Name | EATON CROUSE-HINDS INDUSTRIAL |
| Vendor Number | 782274 |
| Vendor Short Name | CRS-H |
| Voltage Rating | 600//250 VAC//VDC;600 Volt AC at 50 to 400 Hertz, 250 Volt DC |
| Wire Size | 4 To 1 AWG (Building), 4 To 2 AWG (Extra Flex) |
